Deskripsi Produk

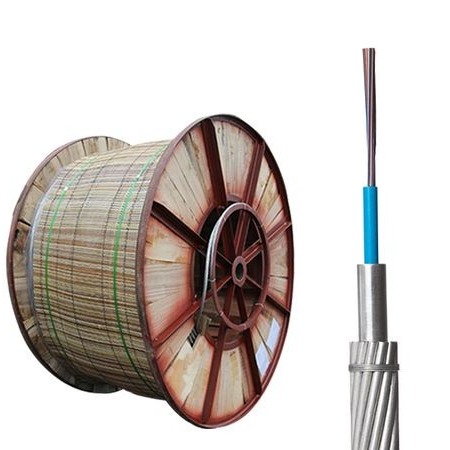

OPGW Cable Overview
Key Features & Advantages
-
Superior Protection: Stainless steel tube with water-blocking compounds shields fibers from moisture and stress.
-
High Strength: Compact, durable design resists tension and harsh environments.
-
Excellent Electrical Performance: Minimizes power grid interference during faults.
-
Easy Installation: Compatible with standard ground wire setups for direct replacement.
-
Dual Function: Provides grounding and optical communication simultaneously.
-
Wide Application: Ideal for power transmission lines, substations, and smart grids.
Main Functions
OPGW cables serve power communication systems, supporting relay protection, automatic control, and data transmission. Installed along high-voltage lines, they integrate optical communication and grounding in one system.

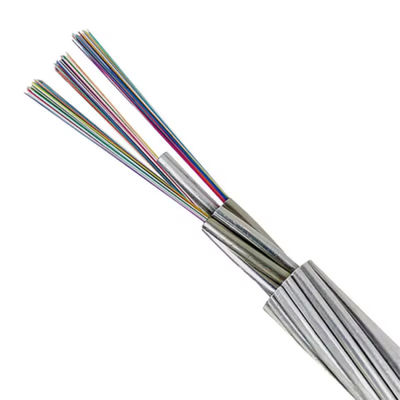

Structure
Made of two or three layers of aluminum-clad steel or aluminum alloy wires, OPGW is designed for the mechanical and structural demands of transmission lines.
Fiber Specifications
-
Fiber types: G652D, G655C, G657A1, 50/125, 62.5/125, OM3, OM4
-
Fiber count: up to 96 cores
Electrical & Application Range
-
For power lines ≤110KV and UHV systems
-
Suitable for new overhead transmission lines
-
Conducts short-circuit currents and provides lightning protection

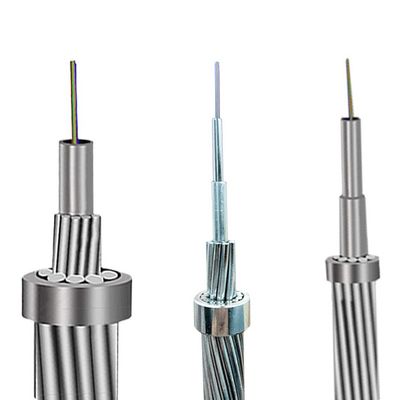

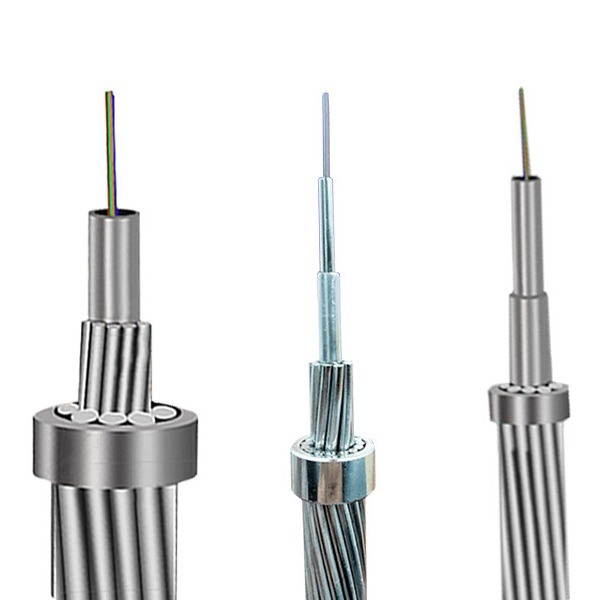

Typical Design
Central aluminum-covered stainless steel tube ensures strong mechanical performance, excellent fiber protection, and long-term reliability.
Parameter
OPGW with PBT Aluminum Tube
| Specification |
Fiber Count |
Diameter(mm) |
Weight (kg/km) |
RTS(KN) |
Short Circuit(KA2s) |
| |
|
|
|
|
|
| OPGW-113(87.9;176.9) |
48 |
14.8 |
600 |
87.9 |
176.9 |
| OPGW-70(81; 41) |
24 |
12 |
500 |
81 |
41 |
| OPGW-66(79;36) |
36 |
11.8 |
484 |
79 |
36 |
| OPGW-77(72;36) |
36 |
12.7 |
503 |
72 |
67 |
OPGW Typical Designs of Stranded Stainless Steel Tube
Typical design for Double Layer:
| Specification |
Fiber Count |
Diameter(mm) |
Weight (kg/km) |
RTS(KN) |
Short Circuit (KA2s) |
| OPGW-89[55.4;62.9] |
24 |
12.6 |
381 |
55.4 |
62.9 |
| OPGW-110[90.0;86.9] |
24 |
14 |
600 |
90 |
86.9 |
| OPGW-104[64.6;85.6] |
28 |
13.6 |
441 |
64.6 |
85.6 |
| OPGW-127[79.0;129.5] |
36 |
15 |
537 |
79 |
129.5 |
| OPGW-137[85.0;148.5] |
36 |
15.6 |
575 |
85 |
148.5 |
| OPGW-145[98.6;162.3] |
48 |
16 |
719 |
98.6 |
162.3 |
Typical design for Three Layer:
| Specification |
Fiber Count |
Diameter(mm) |
Weight (kg/km) |
RTS(KN) |
Short Circuit (KA2s) |
| OPGW-232[343.0;191.4] |
28 |
20.15 |
1696 |
343 |
191.4 |
| OPGW-254[116.5;554.6] |
36 |
21 |
889 |
116.5 |
554.6 |
| OPGW-347[366.9;687.7] |
48 |
24.7 |
2157 |
366.9 |
687.7 |
| OPGW-282[358.7;372.1] |
96 |
22.5 |
1938 |
358.7 |
372.1 |
OPGW Typical Designs of Central AL-covered Stainless Steel Tube
Typical Design for Single Layer
| Specification |
Fiber Count |
Diameter(mm) |
Weight (kg/km) |
RTS(KN) |
Short Circuit(KA2s) |
| OPGW-80(82.3;46.8) |
24 |
11.9 |
504 |
82.3 |
46.8 |
| OPGW-70(54.0;8.4) |
24 |
11 |
432 |
70.1 |
33.9 |
| OPGW-80(84.6;46.7) |
48 |
12.1 |
514 |
84.6 |
46.7 |
Typical Design for Double Layer
| Specification |
Fiber Count |
Diameter(mm) |
Weight (kg/km) |
RTS(KN) |
Short Circuit(KA2s) |
| OPGW-143(87.9;176.9) |
36 |
15.9 |
617 |
87.9 |
176.9 |
OPGW Typical Designs of Central Stainless Steel Loose Tube
Typical design for Single Layer:
| Specification |
Fiber Count |
Diameter (mm) |
Weight (kg/km) |
RTS (KN) |
Short Circuit (KA2s) |
| OPGW-32(40.6;4.7) |
12 |
7.8 |
243 |
40.6 |
4.7 |
| OPGW-42(54.0;8.4) |
24 |
9 |
313 |
54 |
8.4 |
| OPGW-42(43.5;10.6) |
24 |
9 |
284 |
43.5 |
10.6 |
| OPGW-54(55.9;17.5) |
36 |
10.2 |
394 |
67.8 |
13.9 |
| OPGW-61(73.7;175) |
48 |
10.8 |
438 |
73.7 |
17.5 |
| OPGW-61(55.1;24.5) |
48 |
10.8 |
358 |
55.1 |
24.5 |
| OPGW-68(80.8;21.7) |
54 |
11.4 |
485 |
80.8 |
21.7 |
| OPGW-75(54.5;41.7) |
60 |
12 |
459 |
63 |
36.3 |
| OPGW-76(54.5;41.7) |
60 |
12 |
385 |
54.5 |
41.7 |
Typical design for Double Layer:
| Specification |
Fiber Count |
Diameter (mm) |
Weight (kg/km) |
RTS (KN) |
Short Circuit (KA2s) |
| OPGW-96(121.7;42.2) |
12 |
13 |
671 |
121.7 |
42.2 |
| OPGW-127(141.0;87.9) |
24 |
15 |
825 |
141 |
87.9 |
| OPGW-127(77.8;128.0) |
24 |
15 |
547 |
77.8 |
128 |
| OPGW-145(121.0;132.2) |
28 |
16 |
857 |
121 |
132.2 |
| OPGW-163(138.2;183.6) |
36 |
17 |
910 |
138.2 |
186.3 |
| OPGW-163(99.9;213.7) |
36 |
17 |
694 |
99.9 |
213.7 |
| OPGW-183(109.7;268.7) |
48 |
18 |
775 |
109.7 |
268.7 |
| OPGW-183(118.4;261.6) |
48 |
18 |
895 |
118.4 |
261.6 |
FAQ
1. Are you a trading company or manufacturer?
We are a professional fiber optic cable manufacturer with over 10 years of experience, based in Guangzhou. Welcome to visit our factory.
2. How do you ensure product quality?
All fibers are strictly tested before delivery. Free samples are available for quality inspection after price confirmation.
3. Do you accept small orders?
Yes. Trial and small-volume orders are welcome to build long-term cooperation.
4. What is the delivery time?
Normally 3–7 working days, depending on quantity. Production and shipping start once payment is confirmed.
5. Do you offer OEM service?
Yes. OEM customization and logo printing are available according to your design requirements.
