4/8/12 Core ASU Fiber Optic Cable | Mini ADSS Self-Supporting Cable for 80-150M Span
Kontak Person : JQ CABLE
Nomor telepon : +8618122383351
Ada apa : +8618122383351
Kuantitas min Order : | 1 kilometer | Kemasan rincian : | Drum kayu |
---|---|---|---|
Waktu pengiriman : | 2-5 hari | Syarat-syarat pembayaran : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Menyediakan kemampuan : | 8000 kilometer per bulan |
Tempat asal: | Guangdong, Cina | Nama merek: | JQ or OEM/Customize |
---|---|---|---|
Sertifikasi: | CE/ISO9001/RoHS/FCC | Nomor model: | ADSS-4C/12FC/24C/48C/96C/144C |
Informasi Detail |
|||
Nomor model: | ADSS -144B1 | Jenis: | Kabel serat optik luar ruangan |
---|---|---|---|
Tempat asal: | Guangdong, Cina | Jumlah konduktor: | ≥ 10 |
Tipe serat: | G652D/G657A1/G657A2/OM1/OM2/OM3/OM4 | Panjang: | Sebagaimana diperlukan |
Warna: | Hitam/disesuaikan | Anggota kekuatan: | Benang Aramid |
Jaket:: | Lembar PE ganda | Bahan tabung longgar: | PBT |
Selubung luar: | PE/MDPE/HDPE atau sebagai permintaan Anda | Kemasan: | Drum kayu/disesuaikan |
Aplikasi: | Udara, atas | OEM: | Tersedia |
Menjangkau: | 50m-1000m | Sertifikasi: | CE/ROHS/ISO9001 |
Atenuasi Serat: | ≤0,4dB/km | Nomor Kekuatan: | FRP, Benang Kevlar Aramid |
Sedang mengemas: | Drum karton | Model Kabel: | Jaket ganda/jaket tunggal |
Suhu: | -40 ℃ hingga +70 ℃ | Materi anggota kekuatan: | Benang FRP/Aramid |
Panjang drum: | 5km/drum | Jumlah konduktor: | 12core |
Mencicipi: | Bebas | Bahan selubung: | PE atau Kustomisasi/HDPE/MDPE |
Suhu operasi: | -20 ℃ ~+60 ℃ | Selubung kabel: | PE |
Meteran tabung: | PBT | Anggota kekuatan: | FRP, Benang Kevlar Aramid |
Inti: | 48/96/144 Core | ||
Menyoroti: | ADSS fiber optic cable 96 core,outdoor aerial ADSS cable,non-armored double jacket fiber optic cable |
Deskripsi Produk

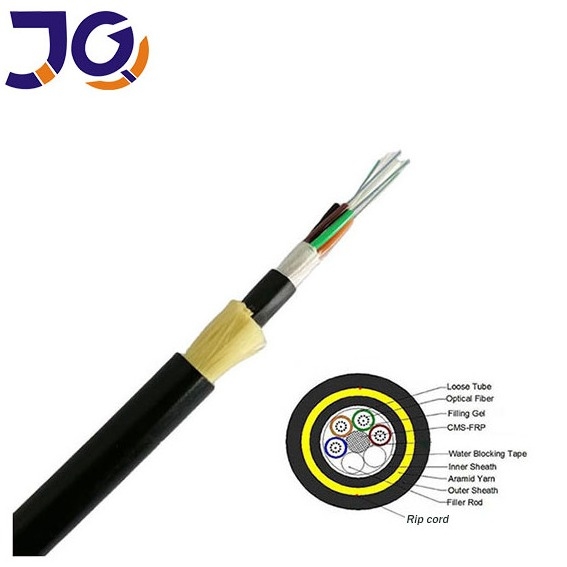

ADSS Cable Structure and Design
ADSS cable adopts a loose tube stranded construction for reliable fiber protection. The optical fibers, 250μm, are housed in loose tubes made from high-modulus plastic, providing excellent mechanical strength and durability.
Each tube is filled with a water-blocking gel, preventing moisture ingress and protecting fibers from long-term water damage. The tubes and fillers are stranded around a central FRP (Fiber Reinforced Plastic) strength member, creating a compact and round cable core that is completely non-metallic, safe for use near power lines.
The cable core is filled with filling compound for additional water blocking, then covered with a thin PE (polyethylene) inner sheath to provide a smooth and stable structure. A stranded layer of aramid yarns is applied over the inner sheath, offering outstanding tensile strength and resistance to mechanical stress. Finally, the cable is completed with either a PE outer sheath for general outdoor use or an AT (anti-tracking) outer sheath for installation in high-voltage environments (≥110 kV).
Additional Benefits
Dielectric Design: No metallic elements, eliminating grounding requirements.
Long Service Life: Excellent UV resistance and weatherproof performance.
Lightweight and Easy to Install: Self-supporting design reduces installation cost and time.
Customizable: Available in various fiber counts (up to 288 cores) and sheath materials to suit different span lengths and project needs.

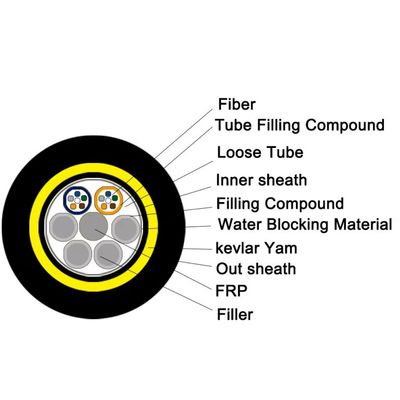

Cable Structure
PE Outer Jacket: Double-jacket design for enhanced durability and weather resistance
FRP Central Strength Member: Provides stable support and maintains cable shape
Rip Cord: Easy and quick sheath removal during installation
Fiber Jelly Filling: Water-blocking compound for moisture protection
Loose Tube: Holds fibers securely and allows free movement to minimize stress
Optical Fibers: High-quality single-mode or multi-mode fibers
Aramid Yarns: High tensile strength to withstand mechanical load
Key Characteristics
Low Attenuation and Dispersion: Stable transmission performance even under changing environments
Strong Mechanical Properties: Withstands tension, crush, and impact for reliable long-term use
Excellent Flexibility: Good bending radius, easy to route and install
Compact Design: Small outer diameter, lightweight, and space-saving construction
Application:
* The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed.
* For overhead power lines under 110kV, PE outer sheath is applied.
* For power lines equal to or over 110kV, AT outer sheath is applied.
Specification:
Company:
WHY CHOOSE US:
Certification:
FAQ
1. Who Are We
We are a professional fiber optic cable manufacturer based in Guangdong China since 2017 Our products are exported to Africa South America Western Europe the Middle East Southeast Asia and South Asia We have a team of 11 to 50 experienced staff
2. How Do We Ensure Quality
Pre production samples are provided for approval before mass production
Every order undergoes strict final inspection before shipment
3. What Can You Buy From Us
Fiber Optic Cable FTTH Drop Cable Indoor and Outdoor Communication Cables and related accessories
4. What Services Do We Offer
Delivery Terms: FOB EXW
Payment Options: T T L C D P D A Credit Card PayPal Western Union Cash
Currencies: USD CNY
Languages: English Chinese
