ADSS All Dielectric Self Supporting Fiber Optic Cable Up to 96 Core Single Jacket Aerial Outdoor Overhead Installation

1km
MOQ
Inquiry for price
harga
ADSS All Dielectric Self Supporting Fiber Optic Cable Up to 96 Core Single Jacket Aerial Outdoor Overhead Installation
fitur Galeri Deskripsi Produk Quote request suatu
fitur
Spesifikasi
Diameter kabel: 9.7mm 、 10mm
Warna Jaket: Hitam, disesuaikan
Suhu pengoperasian: -40 ℃ ~+70 ℃
Aplikasi: Overhead/Aerial, Pipa/Lapisan Saluran
Jumlah serat: 2-144 core
Suhu Penyimpanan: -40℃~+85℃
Radius Lentur: Statis: 10D/Dinamis: 20D
Menjangkau: 50/100/200/300/400 Meter
Menyoroti:

ADSS fiber optic cable 96 core

,

aerial outdoor ADSS cable

,

single jacket ADSS cable
Informasi dasar
Tempat asal: ABS, PC/ABS, PP, PC, POM(Asetal/Delrin), Nilon 6, Nilon 6/6, PA 12, HDPE, LDPE, PS(HIPS), PVC, PET,
Nama merek: JQ/OEM/Customize
Sertifikasi: ROHS/ISO/CE/FCC
Nomor model: ADSS-4C/12FC/24C/48C/96C/144C
Syarat-syarat pembayaran & pengiriman
Kemasan rincian: paket kayu atau kotak kartun
Waktu pengiriman: 5-8 hari kerja
Syarat-syarat pembayaran: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Menyediakan kemampuan: 4500KM Per Bulan
Deskripsi Produk

ADSS Fiber Optic Cable All Dielectric Self Supporting Aerial Cable



Product Introduction:

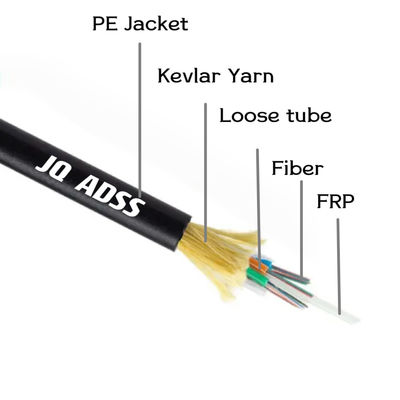

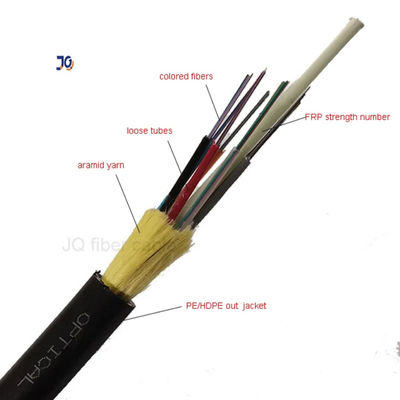

ADSS fiber optic cable features a loose tube stranded structure with FRP strength member, designed for reliable aerial installation without metallic components.



Key Features:

  •  All dielectric design with FRP central strength member
  •  Loose tube structure with water-resistant filling compound
  •  Aramid yarn reinforcement for high tensile strength
  •  PE or AT outer sheath for outdoor protection
  •  Lightweight structure for aerial installation



Applications:

  • Overhead aerial fiber optic installations
  • Power line communication networks
  • Long-distance backbone transmission
  • Telecom and broadband networks

ADSS All Dielectric Self Supporting Fiber Optic Cable Up to 96 Core Single Jacket Aerial Outdoor Overhead Installation 0

ADSS All Dielectric Self Supporting Fiber Optic Cable Up to 96 Core Single Jacket Aerial Outdoor Overhead Installation 1



No. Items Unit Specification
G.652D
1 Mode Field Diameter 13 10nm μm 9.2±0.4
1550nm um 10.4±0.5
2 Cladding Diameter μm 124.8±0.7
3 Cladding Non-Circularity % ≤0.7
4 Core-Cladding Concentricity Error μm ≤0.5
5 Coating Diameter μm 245±5
6 Coating Non-Circularity % ≤6.0
7 Cladding-Coating Concentricity Error um ≤12.0
8 Cable Cutoff Wavelength μm λcc≤1260
9 Attenuation(max.) 1550nm dB/km ≤0.36
1310nm dB/km <0.22



ADSS All Dielectric Self Supporting Fiber Optic Cable Up to 96 Core Single Jacket Aerial Outdoor Overhead Installation 2

ADSS All Dielectric Self Supporting Fiber Optic Cable Up to 96 Core Single Jacket Aerial Outdoor Overhead Installation 3



ADSS Fiber Optic Cable FAQ



Q1: What is ADSS fiber optic cable used for?
A: It is used for aerial installations on utility poles and power lines.



Q2: What does ADSS stand for?
A: ADSS stands for All Dielectric Self Supporting.



Q3: Does the cable contain metal components?
A: No, it uses a non-metallic FRP strength member.



Q4: What provides tensile strength in the cable?
A: Aramid yarn reinforcement provides high tensile strength.



Q5: What outer sheath options are available?
A: PE or AT outer sheath for different outdoor environments.

Label:

24 Core Adss Aerial Fiber Optic Cable

200m Span Adss Aerial Fiber Optic Cable

G657A1 adss optical cable
