Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center
Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center
Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center
Hubungi sekarang

Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center

Kuantitas min Order : 50 pcs Kemasan rincian : Tas pe atau kotak plastik dan kotak kartun
Waktu pengiriman : 3-5 hari kerja Syarat-syarat pembayaran : Western Union, T/T, l/c
Menyediakan kemampuan : 30000 pcs per hari
Tempat asal: Guangzhou, Cina Nama merek: JQ/OEM/Customize
Sertifikasi: ISO 9001,ROHS CE-EMC FCC SDOC Nomor model: Kuncir serat optik

Informasi Detail
Aplikasi: FTTH FTTB FTTX Network Tipe konektor: Sc upc
Panjang: 3 Meter atau Disesuaikan Warna: disesuaikan
Diameter kabel: 0.9/2.0/3.0mm Wajah akhir ferrule: PC/UPC/APC
Bahan jaket: PVC/LSZH/PE Nama Produk: Kuncir serat optik
Panjang gelombang pemancar: 1310nm Barang: kabel patch serat optik
Tipe serat: G.652D/G.657A1/G.657A2 Jaringan: 4g, 5G
Serat No: 1 (simpleks) Produk: OM4 SC-SC 12Core Fiber Optic Patch Cable
Jumlah serat: 9/125um, 50/125um, 62.5/125U Kehilangan kembali: > 50dB (UPC)/> 60dB (APC)
Diammeter kabel: 2.0 3.0mm Ferrule: Apc
Tipe Polandia: UPC ke UPC Panjang kabel: 1m/2m/3m/5m/10m/disesuaikan
Mode serat: Mode tunggal Jenis kabel: Mode tunggal/multi-mode
Jumlah core: Inti tunggal Panjang gelombang: 1260-1650nm
Konektor opsional: LC/SC/FC/ST Batin: Keramik
Pemolesan: PC atau UPC Fitur: Kinerja Tinggi di IL&RL
Jumlah konduktor: 1 Jaket: PVC/LSZH
Menyoroti:

12 core fiber optic pigtail

,

SC UPC multimode pigtail

,

FTTH fiber optic patch cord

Deskripsi Produk

FTTH FTTB 12 Core SC UPC 0.9mm Multimode Fiber Optic Pigtail



Product Description
Our fiber optic pigtails are essential for optical network connections, featuring pre-terminated connectors for quick and reliable installation. Available in 4, 6, 8, 12, 24, and 48 cores with single-mode or multimode options, they are ideal for patch panels, cross-connects, and equipment jumper connections. Each pigtail is manufactured with high-quality riser-grade cable and factory-tested to meet or exceed Telcordia standards, ensuring stable performance and low insertion loss.



Key Features

  • Multiple connector types: SC, LC, FC, ST, MU, MT-RJ, E2000

  • Polishing options: PC, APC, UPC, SPC

  • Fiber types: Single-mode (9/125) or Multimode (50/125, 62.5/125)

  • Cable diameters: Φ0.9mm, Φ2.0mm, Φ3.0mm

  • Configurations: Bunch, ribbon fan-out, simplex, duplex

  • Jacket materials: PVC or LSZH, with OM1, OM2, OM3 options

  • Excellent durability, low insertion loss, and full interchangeability

  • Customizable lengths, connectors, and fiber counts available

Applications

  • FTTH (Fiber to the Home) and FTTB deployments

  • LAN and enterprise network connections

  • CATV and CCTV systems

  • High-speed data transmission

  • Fiber optic sensing and monitoring systems




Optical Characteristics

Item SM(Single Mode) MM(Multimode)
Fiber Cable Type G652D/G655/G657A1/G657A2 OM1 oM2/OM3/OM4
Fiber Diameter (um) 9/125 62.5/125 50/125
Cable oD (mm) 0.9/1.6/1.8/2.0/2.4/3.0
Endface Type PC UPC APC UPC UPC
Typical Insertion Loss (dB) <0.2 <0.15 <0.2 <0.1 <0.1
Return Loss (dB) >45 >50 >60 /
Insert-pull Test (dB) <0.2 <0.3 <0.15
Interchangeability (dB) <0.1 <0.15 <0.1
nti-tensile Force (N) >70
remperature Range (c) -40r+80





Detailed Image

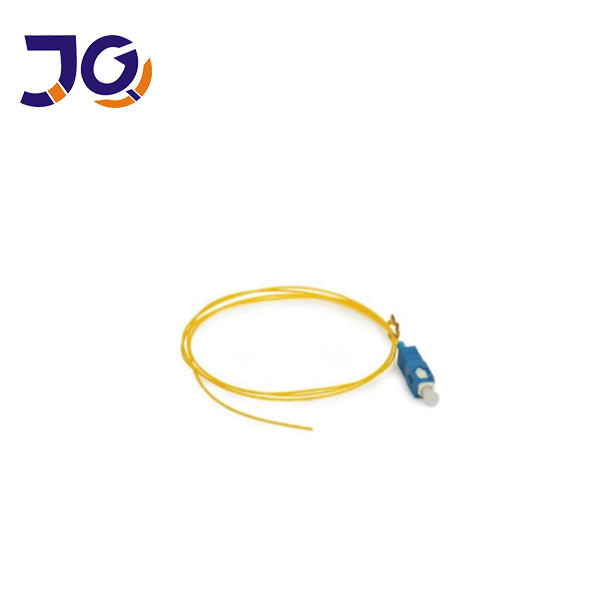

Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center 0

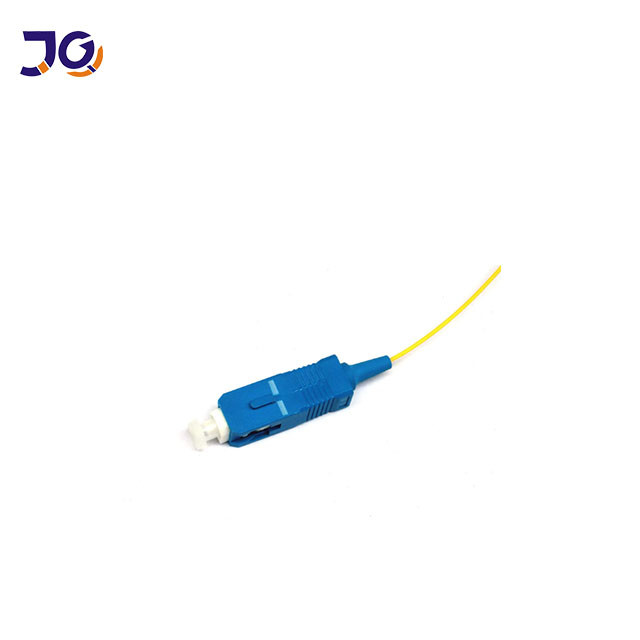

Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center 1

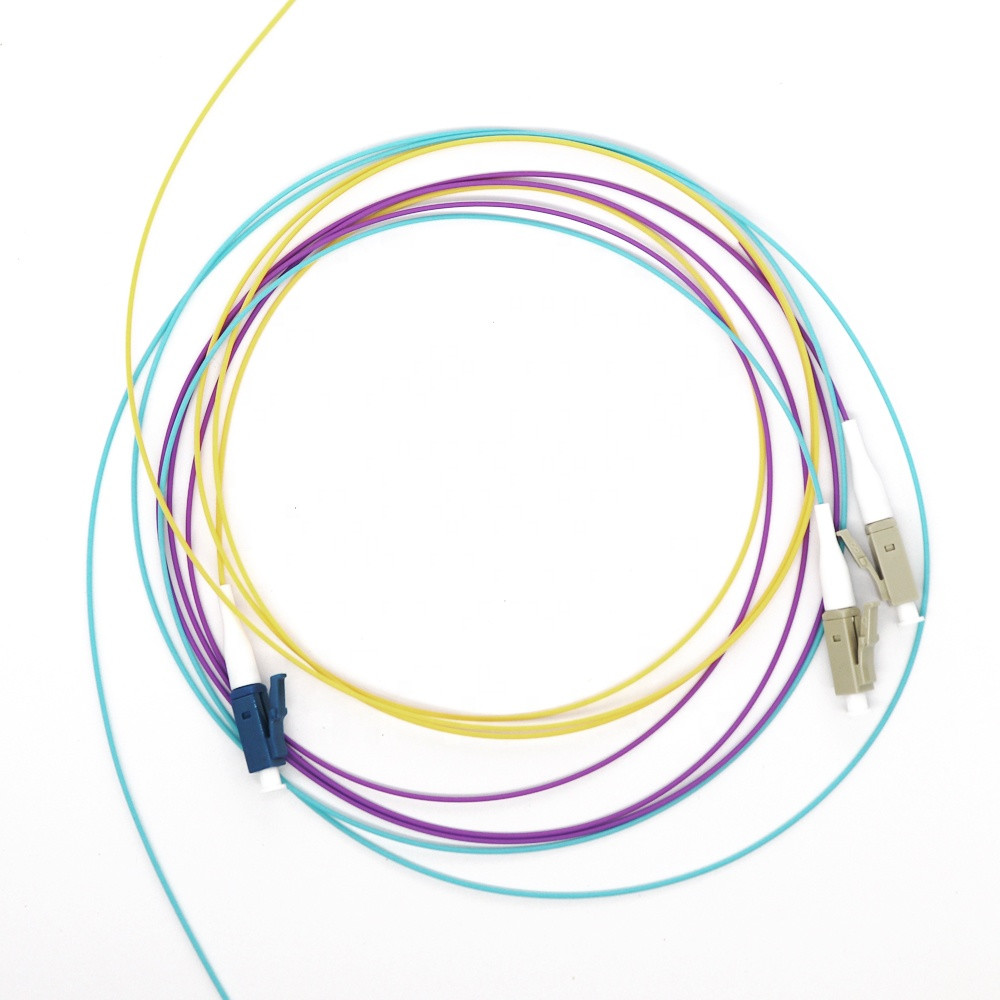

Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center 2

Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center 3



FAQ – Frequently Asked Questions



1. Are you the actual manufacturer?
Yes, we are a direct manufacturer with over 10 years of production experience.



2. Do you accept small orders?
Absolutely. Small orders are welcome, and we fully support new projects since most businesses start small.



3. What is your product warranty?
We provide a 25-year warranty for all fiber optic cables.



4. What is your delivery time?
Typically, we ship within 3–5 working days, depending on order quantity.



5. What is your annual production capacity?

  • Outdoor / Indoor Fiber Optic Cable: 6,000,000 KM per year

  • FTTH / FTTX / FTTA Cable: 6,000,000 KM per year

  • Patch Cords & Pigtails: 12,400,000 pieces per year

6. Can you offer customized products and logo printing?
Yes, we provide OEM & ODM services. Just send us your design or specifications.
