Rumah /Produk/Kabel Patch Serat Optik/SC UPC Fiber Optic Pigtail 0.9mm Multimode Cable for FTTH FTTB Network Low Loss Easy Splicing

SC UPC Fiber Optic Pigtail 0.9mm Multimode Cable for FTTH FTTB Network Low Loss Easy Splicing

50 buah
MOQ
Inquiry for price
harga
SC UPC Fiber Optic Pigtail 0.9mm Multimode Cable for FTTH FTTB Network Low Loss Easy Splicing
fitur Galeri Deskripsi Produk Quote request suatu
fitur
Spesifikasi
Aplikasi: FTTH FTTB FTTX Network
Tipe Konektor: Sc upc
Diameter kabel: 0.9/2.0/3.0mm
Nama Produk: Kuncir Serat Optik
Diameter kabel: 2.0mm, 3.0mm, 3.5mm
Diameter Serat: 9/125μm, 50/125μm, 62,5/125μm
Penurunan serat: Penyelarasan serat V-groove
Menyoroti:

SC UPC multimode fiber pigtail

,

0.9mm FTTH fiber optic cable

,

low loss fiber patch cord
Informasi dasar
Tempat asal: Guangzhou, Tiongkok
Nama merek: JQ/OEM/Customize
Sertifikasi: ISO 9001,ROHS CE-EMC FCC SDOC
Nomor model: Kuncir Serat Optik
Syarat-syarat pembayaran & pengiriman
Kemasan rincian: Tas pe atau kotak plastik dan kotak kartun
Waktu pengiriman: 3-5 hari kerja
Syarat-syarat pembayaran: Western Union, T/T, l/c
Menyediakan kemampuan: 30000 pcs per hari
Deskripsi Produk

12 Core SC UPC Fiber Optic Pigtail Multimode 0.9mm FTTH Cable



Product Introduction:
12 core SC UPC fiber optic pigtail is designed for fiber termination and splicing, providing stable and low-loss connections in telecom and data networks.



Key Features:
 SC UPC connectors with low insertion loss
 Multimode fiber 50/125 or 62.5/125 optional
 0.9mm compact cable design
 PVC or LSZH jacket for safety
 100% factory tested for performance
 Multiple core counts and connector types available



Applications:

  • FTTH and FTTB networks
  • Telecom and broadband systems
  • Data centers and server rooms
  • LAN WAN and CATV networks
  • Optical distribution and splicing systems


Optical Characteristics

Item SM(Single Mode) MM(Multimode)
Fiber Cable Type G652D/G655/G657A1/G657A2 OM1 oM2/OM3/OM4
Fiber Diameter (um) 9/125 62.5/125 50/125
Cable oD (mm) 0.9/1.6/1.8/2.0/2.4/3.0
Endface Type PC UPC APC UPC UPC
Typical Insertion Loss (dB) <0.2 <0.15 <0.2 <0.1 <0.1
Return Loss (dB) >45 >50 >60 /
Insert-pull Test (dB) <0.2 <0.3 <0.15
Interchangeability (dB) <0.1 <0.15 <0.1
nti-tensile Force (N) >70
remperature Range (c) -40r+80

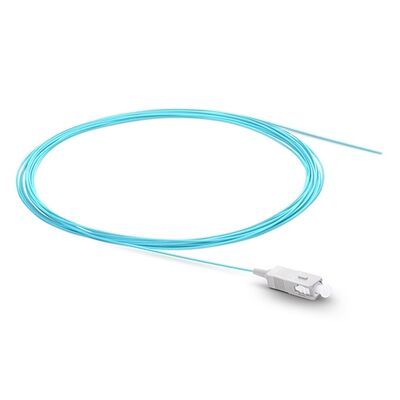

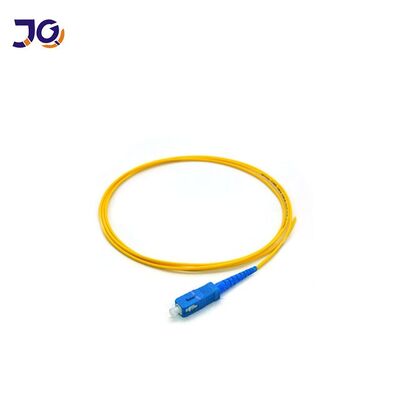

Detailed Image
SC UPC Fiber Optic Pigtail 0.9mm Multimode Cable for FTTH FTTB Network Low Loss Easy Splicing 0

SC UPC Fiber Optic Pigtail 0.9mm Multimode Cable for FTTH FTTB Network Low Loss Easy Splicing 1
SC UPC Fiber Optic Pigtail 0.9mm Multimode Cable for FTTH FTTB Network Low Loss Easy Splicing 2

SC UPC Fiber Optic Pigtail 0.9mm Multimode Cable for FTTH FTTB Network Low Loss Easy Splicing 3



Fiber Optic Pigtail FAQ



Q1: What is this pigtail used for?
A: It is used for fiber splicing, termination, and connection in networks.



Q2: What connector type does it use?
A: Standard SC UPC, with other connectors optional.



Q3: What fiber types are available?
A: Multimode (50/125, 62.5/125) and optional single-mode.



Q4: Is it safe for indoor use?
A: Yes, PVC or LSZH jackets are available for safety.



Q5: Is it tested before delivery?
A: Yes, all pigtails are 100% factory tested.
