Product Description
This SC/APC to SC/UPC fiber optic patch cord delivers reliable, high-speed connections for telecom and data networks. Made with 9/125µm single-mode simplex fiber and a 900µm tight buffer, it ensures stable transmission and long-term durability.
Each cord is factory-terminated and UPC polished, 100% tested for insertion loss and return loss, with traceable QC records. Compliant with TIA/EIA-568-B.3 and Telcordia GR-326-CORE standards, it guarantees excellent end-face geometry and superior optical performance.
The 3.0mm LSZH jacket provides flame retardance and low smoke emission, ideal for safe indoor use in data centers, LANs, FTTH, FTTX, and telecom rooms. Available in 1m, 2m, and 3m lengths for flexible installation.
Key Features:
-
Connector: SC/APC to SC/UPC
-
Fiber: 9/125µm Single-Mode Simplex
-
Jacket: LSZH, 3.0mm OD
-
Factory polished & terminated for stable performance
-
Fully compliant with TIA/EIA & Telcordia standards
-
100% tested with traceable QC record
-
Lengths: 1m, 2m, 3m
-
Applications: FTTH, FTTX, data centers, LAN, CATV, telecom
Connector Type
Feature
Low Insertion loss
High return loss
Good Repeatability
Good Interchange
Excellent Environmental Adaptability
Optical Characteristics
|
Parameter
|
PC
|
UPC
|
APC
|
Multi-mode
|
|
Insertion loss
|
≤0.3dB
|
≤0.3dB
|
≤0.3dB
|
≤0.3dB
|
|
Return loss
|
≥40dB
|
≥50dB
|
≥60dB
|
≥35dB
|
|
Exchange
|
≤0.2dB
|
|
Repeatability
|
≤0.2dB
|
|
Servicelife
|
>1000times
|
|
Tensile strength
|
>10kg
|
|
Temperature range
|
-40°C to +85°C
|
Technical Data
|
Type
|
Standard,Master
|
|
Style
|

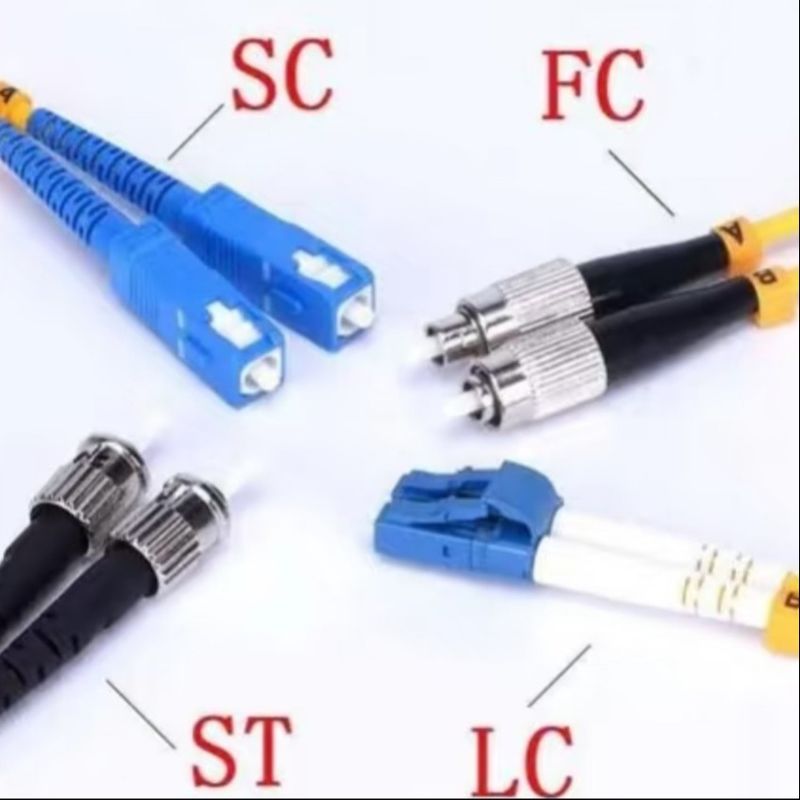

LC,SC,ST,FC.MU,DIN,MPO,SC/APC,
FC/APC,LC/APC.MU/APC
|
|
Fiber
|
Singlemode/Multimode
50/125,62.5/125(Multi mode) OM2&OM1
50/125,10G(Multi mode)OM3
|
|
Cable
|
Simplex,Duplex
outer diameter:3.0mm,20mm,0.9mm
PVC or LSZH
|
|
Polishing Manner
|
UPC,SPC,APC(8°&6°)
|
|
Insertion Loss
|
≤0.1dB (For Single mode Master)
≤0.25dB (For Single mode Standard)
≤0.25dB (ForMultimode)
Tested by JDSRM3750
|
|
Return Loss
(Single mode)
|
UPC≥50dB
SPC≥55dB
APC≥60dB (typ.65dB)
Tested by JDSRM3750
|
|
Repeat ability
|
≤0.1dB
|
|
Operating temperature
|
-400 C° to 850 C°
|
|
Geometry Requirement
(Single mode)
|
Ferrule Endface Radius
7mm≤R≤12mm (For APC)
10mm≤R≤25mm (For Standard)
Apex Offset≤30μm (For Master)
Apex Offset≤50μm (For Standard)
Under cut-50nm SU≤50nm
Tested by DORCZX-1
|
Application
Communication rooms
FTTH (Fiber to The Home)
LAN (Local Area Network)
FOS(fiber optic sensor)
Fiber Optic Communication System
Optical fiber connected and transmitted equipment
Recommed Products
Packing & Delivery
Packing:100/Pcs in one Carton box or OEM.
Shipment:by Sea,by Air,by Express:DHL/UPS/Fedex/EMS/TNT etc
Deliverty: 3-5 days after payment dowm,According to ur order quantity.
Factory Pictures
FAQ – SC/APC to SC/UPC Fiber Optic Patch Cord
Q1: What is the difference between SC/APC and SC/UPC connectors?
A1: SC/APC has an 8° angled end-face to reduce back reflection, ideal for CATV, FTTx, and high-precision networks. SC/UPC has a flat, ultra-polished surface, commonly used in data and telecom applications.
Q2: Is this patch cord single-mode or multimode?
A2: It is a single-mode (SM) patch cord with 9/125µm simplex fiber, suitable for long-distance, high-speed transmission.
Q3: What lengths are available?
A3: Standard lengths are 1m, 2m, and 3m. Custom lengths are available upon request.
Q4: What jacket material is used?
A4: 3.0mm LSZH (Low Smoke Zero Halogen) jacket, flame-retardant and safe for indoor installations.
Q5: Are these patch cords tested?
A5: Yes, all cords are 100% factory tested for insertion loss and return loss, with traceable QC data.
Q6: What standards does it comply with?
A6: Meets TIA/EIA-568-B.3 and Telcordia GR-326-CORE Issue 3 standards for consistent quality.
Q7: Where can this patch cord be used?
A7: Suitable for FTTH, FTTX, LAN, CATV, data centers, and telecom networks.
Q8: Can I customize connectors or lengths?
A8: Yes, we offer custom connector types (LC, FC, ST, etc.) and cable lengths on request.
