Rumah ProdukKabel Fiber Optik ADSS4/8/12 Core ASU Fiber Optic Cable | Mini ADSS Self-Supporting Cable for 80-150M Span
4/8/12 Core ASU Fiber Optic Cable | Mini ADSS Self-Supporting Cable for 80-150M Span
4/8/12 Core ASU Fiber Optic Cable | Mini ADSS Self-Supporting Cable for 80-150M Span
4/8/12 Core ASU Fiber Optic Cable | Mini ADSS Self-Supporting Cable for 80-150M Span 4/8/12 Core ASU Fiber Optic Cable | Mini ADSS Self-Supporting Cable for 80-150M Span 4/8/12 Core ASU Fiber Optic Cable | Mini ADSS Self-Supporting Cable for 80-150M Span 4/8/12 Core ASU Fiber Optic Cable | Mini ADSS Self-Supporting Cable for 80-150M Span
Hubungi sekarang

4/8/12 Core ASU Fiber Optic Cable | Mini ADSS Self-Supporting Cable for 80-150M Span

Kuantitas min Order : 1 kilometer Kemasan rincian : Drum kayu
Waktu pengiriman : 2-5 hari Syarat-syarat pembayaran : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Menyediakan kemampuan : 8000 kilometer per bulan
Tempat asal: Guangdong, Cina Nama merek: JQ/OEM/Customize
Sertifikasi: CE/ISO9001/RoHS/FCC Nomor model: ASU

Informasi Detail
Nomor model: ASU Jenis: Kabel serat optik udara luar
Tempat asal: Guangdong, Cina Jumlah konduktor: ≥ 10
Tipe serat: Mode tunggal G652D atau sebagai permintaan Anda Panjang: Sebagaimana diperlukan
Warna: Disesuaikan Anggota kekuatan: FRP
Kemasan: Drum kayu/disesuaikan Aplikasi: Udara Swadaya
OEM: Tersedia Jumlah core: 2-144 Core
Selubung kabel: HDPE/ MDPE/ PE Opsi serat: G652D, G657A1
Anggota Kekuatan Pusat: Anggota Kekuatan FRP/Kawat Baja Bahan Jaket Luar: Jaket PE tunggal
Perlindungan serat: Gel yang memblokir air CSM: FRP
Suhu penyimpanan: -40 ℃ ~+85 ℃ Lapisan Amor: Pita Aluminium
Anggota kekuatan: Benang Aramid Diameter kabel: 10.5mm
Aplikasi: Udara Status sampel: dalam stok
Periode garansi: 25 tahun Materi anggota kekuatan: Benang FRP/Aramid
Menyoroti:

4 core ADSS fiber optic cable

,

self-supporting fiber cable for 80-150M span

,

mini ADSS cable with warranty

Deskripsi Produk

ASU Optical Cable | Non-Armored Uni-Tube Outdoor Fiber Cable with FRP Strength Members – High Bandwidth & Reliable Transmission



Product Overview

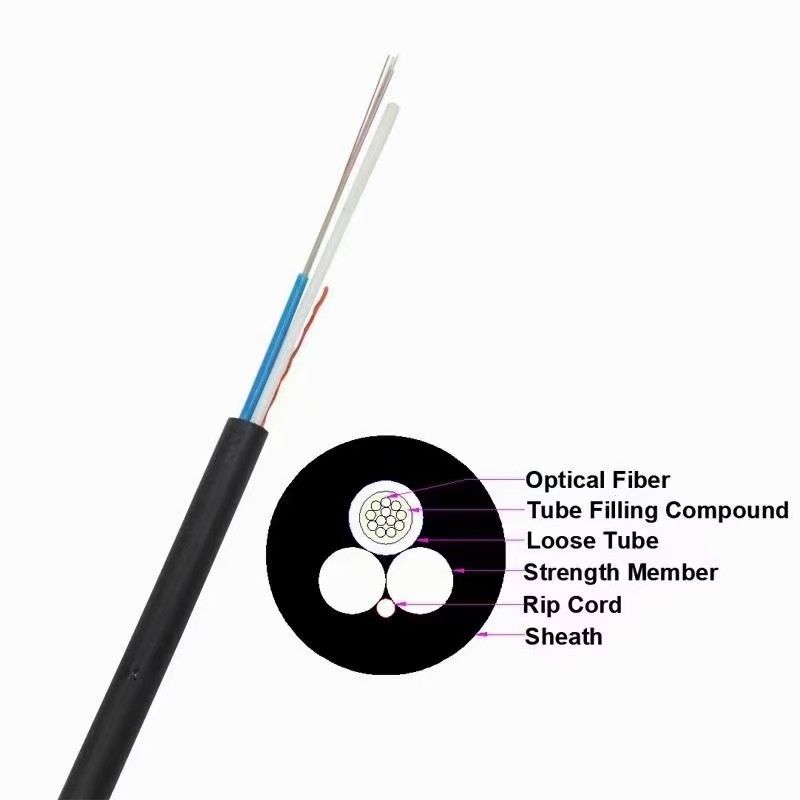

ASU (Non-Armored Uni-Tube) optical cable is designed for reliable and cost-effective outdoor fiber optic communication. The fibers are housed in a loose buffer tube filled with moisture-blocking jelly to prevent water ingress and migration. The cable is covered with a durable black polyethylene (PE) outer jacket for superior environmental protection. Two embedded strength members—either FRP (Fiber Reinforced Plastic) or metallic wires—provide excellent tensile strength, ensuring stable performance even in challenging environments.



Key Features & Benefits

  1. High-Performance Optical Fiber – Utilizes special low-bend-sensitivity fibers that offer high bandwidth and excellent transmission properties, supporting long-distance and high-speed communication.

  2. Enhanced Mechanical Strength – Two parallel FRP or metallic strength members deliver superior crush resistance and tensile performance, protecting the fibers during installation and operation.

  3. Lightweight & Practical Design – Simple, compact cable structure allows for easy handling, transport, and installation, reducing overall project costs.

  4. Easy Stripping & Splicing – Innovative flute design simplifies fiber access, splicing, and maintenance, saving time in the field.

  5. Safety & Compliance – Low Smoke Zero Halogen (LSZH) and flame-retardant sheath minimizes toxic emissions during fire, ensuring a safer installation environment.

  6. Weather & UV Resistant – Outer PE jacket provides strong protection against moisture, sunlight, and harsh outdoor conditions, ensuring long service life.

Applications

  • Power Line Installation – Ideal for aerial installation on the same pole with new or existing power lines.

  • High Electromagnetic Interference Areas – Designed to perform in regions with strong electric fields and high thunderstorm frequency.

  • Long-Span Communication – Excellent choice for long-distance transmission projects and rural broadband deployment.

  • Industrial & Utility Networks – Suitable for power utilities, transportation systems, and communication backbone networks.

  • FTTx & Broadband Projects – Supports fiber-to-the-home (FTTH) and other last-mile network connections.

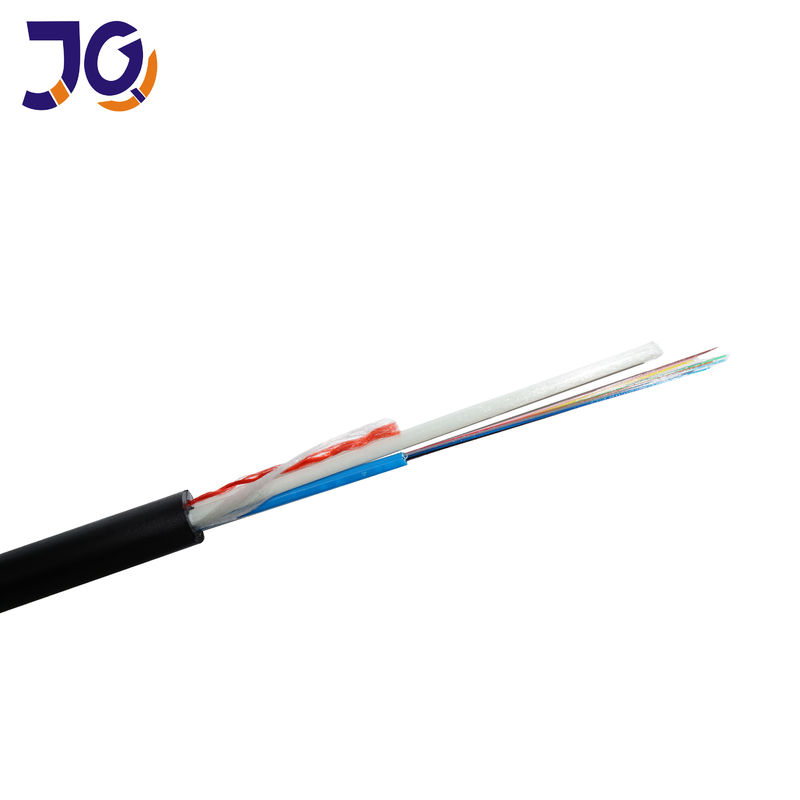

4/8/12 Core ASU Fiber Optic Cable | Mini ADSS Self-Supporting Cable for 80-150M Span 0

Specification:

item value
Model Number ASU
Type Outdoor Fiber Optic Cable
Place of Origin Guangdong,China
Brand Name jiqian
Cable type Outdoor All dielectric self-supporting aerial cable
Number of Conductors ≥ 10
Fiber count 2-24Cores
Fiber Type G652D Single mode or as your request
Fiber color Blue, Orange, Green, Brown,etc
Central strength member FRP
Loose tube Jelly filled
Loose tube Material PBT
Jacket Sheath PE
Color Black or as your need
Package Plywood Reel/customized
Installation Self-supporting aerial
Span 80-150 meters
operating temperature -40 to +70
Certification CE/ROHS/ISO9001 /ANATEL

Company Profile:

Guangzhou Jiqian Fiber Optic Cable Co., Ltd. is located on the 2nd Floor of Building B3, No. 43 Lixin 9th Road, Xintang Town, Zengcheng District, Guangzhou, Guangdong, China. We are a high-tech joint-stock enterprise integrating R&D, production, and sales of optical fiber cables.

Our company focuses on manufacturing a wide range of optical cables with 2–288 cores, designed to meet diverse network and communication needs. Guided by our core values—integrity, speed, flexibility, efficiency, and innovation—we are committed to delivering high-quality products and services that exceed customer expectations.

We uphold the principle that customer satisfaction is the ultimate measure of our success. With competitive pricing, strict quality control, and professional service, we aim to build long-term partnerships and create mutual growth with our clients worldwide.

We sincerely welcome global customers to visit our factory, discuss cooperation opportunities, and work together for a prosperous future.

4/8/12 Core ASU Fiber Optic Cable | Mini ADSS Self-Supporting Cable for 80-150M Span 14/8/12 Core ASU Fiber Optic Cable | Mini ADSS Self-Supporting Cable for 80-150M Span 2

WHY CHOOSE US:

4/8/12 Core ASU Fiber Optic Cable | Mini ADSS Self-Supporting Cable for 80-150M Span 3

Certification:

4/8/12 Core ASU Fiber Optic Cable | Mini ADSS Self-Supporting Cable for 80-150M Span 4



FAQ



1. Who Are We?
We are Guangzhou Jiqian Fiber Optic Cable Co., Ltd., located in Guangdong, China. Established in 2017, we focus on global fiber optic cable sales, serving customers in:

  • Africa (33%)

  • South America (17%)

  • Western Europe (17%)

  • Middle East (17%)

  • Southeast Asia (9%)

  • South Asia (7%)

Our team consists of 11–50 experienced professionals dedicated to providing quality products and services.

2. How Do We Ensure Quality?

  • Pre-production sample provided before mass production

  • 100% final inspection before shipment

3. What Can You Buy From Us?

  • Outdoor / Indoor Fiber Optic Cables

  • FTTH Drop Cables

  • Communication Cables

4. What Services Do We Provide?

  • Delivery Terms: FOB, EXW

  • Payment Options: T/T, L/C, D/P, D/A, Credit Card, PayPal, Western Union, Cash

  • Currency: USD, CNY

  • Languages: English, Chinese

5. What Is the Minimum Order Quantity (MOQ)?

  • MOQ: 1 km

6. Can I Get a Sample?

  • Yes! We provide free samples. You only need to cover express shipping costs.

7. Do You Accept OEM/ODM Orders?

  • Yes. As a manufacturer with an in-house engineering department, we can produce according to your specifications.

8. What Is the Delivery Time?

  • Normally 3–7 days after order confirmation, depending on quantity.

We Support OEM and Customize products.
Welcome to your inquiry! Welcome to visit our facotry!
