4/8/12 Core ASU Fiber Optic Cable | Mini ADSS Self-Supporting Cable for 80-150M Span
Kontak Person : JQ CABLE
Nomor telepon : +8618122383351
Ada apa : +8618122383351
|
Informasi Detail |
|||
| Fiber type: | YOFC or Fiberhome as request | Fiber count: | 2-144 Core |
|---|---|---|---|
| Color: | Black | Jacket material: | PE or AT |
| Name: | ADSS Optical Fiber Cable | Strength member: | FRP central strength member |
| Operating temperature: | -40 ~ +60 C | Span: | 50/100/200/300/400m |
| Installation: | self- supporting Aerial | Packing: | Export wooden drum |
| Menyoroti: | 400m Span Kabel Serat Optik,Kabel Serat Optik 6 Inti |
||
Deskripsi Produk
Kabel Serat Optik 6 Hilos Adss 12 Hilos
![]()
![]()
![]()
Fitur
Karakteristik optik
| Posisi | Satuan | Spesifikasi | |
| G652D | |||
| Diameter Medan Mode | 1310nm | Um.. | 9.2±0.4 |
| 1550nm | Um.. | 10.4±0.5 | |
| Diameter Lapisan | Um.. | 124.8±0.7 | |
| Non-Circularitas Lapisan | % | ≤0.7 | |
| Kesalahan Konsentrisitas Lapisan Inti | Um.. | ≤0.5 | |
| Diameter Lapisan | Um.. | 245±5 | |
| Lapisan Tidak Sirkular | % | ≤6.0 | |
| Kesalahan konsentrisitas pelapis-lapisan | Um.. | ≤12 | |
| Panjang gelombang pemotongan kabel | nm | acc≤1260 | |
| Atenuasi (max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22 | |
![]()
Data Teknis
Gambar Produk
![]()
Aplikasi
Cocok untuk metode Laying Aerial
Penyimpanan / Suhu Operasi: -40°C~+70°C

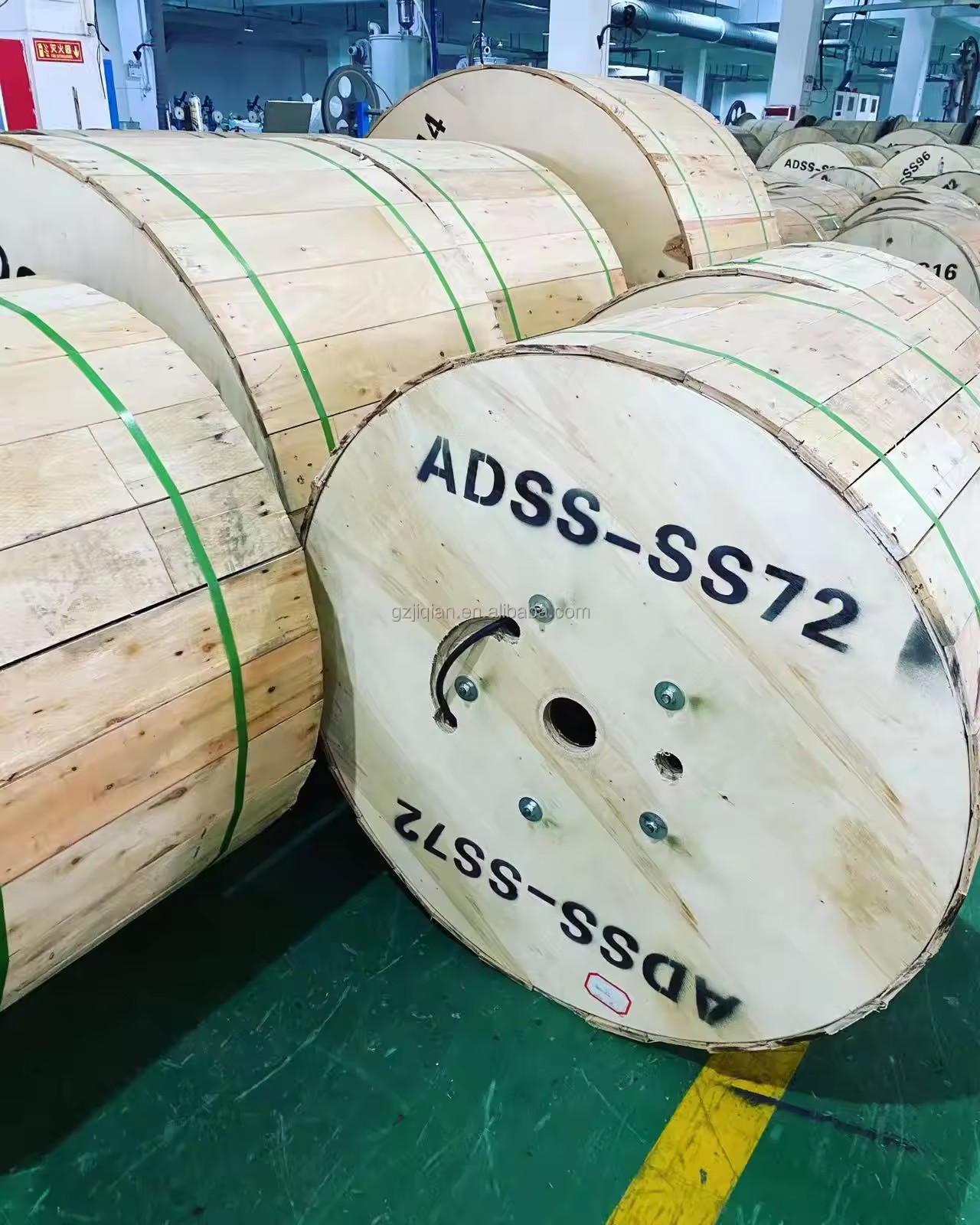

Rincian Paket
![]()
A.Nama perusahaan
B.Barat/Berat bersih
C. Jenis Serat
D.panjang kabel
![]()
