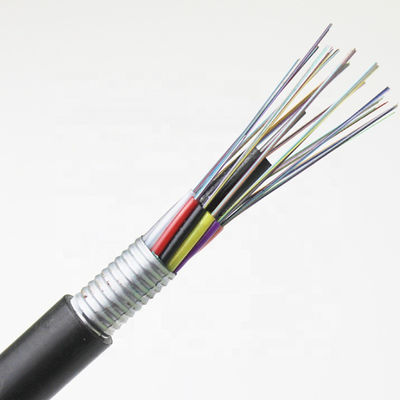

Outdoor GYTA Single Mode Fiber Optic Cable G652D 12 24 Core Duct Aerial Universal Factory Direct Supply

1km
MOQ
Outdoor GYTA Single Mode Fiber Optic Cable G652D 12 24 Core Duct Aerial Universal Factory Direct Supply
fitur Galeri Deskripsi Produk Quote request suatu
fitur
Spesifikasi
Jenis Serat: YOFC, Fiber Home, Fujikura, Corning atau sesuai permintaan
Warna: Hitam
Jaket: PE, MDPE, LSZH, PVC, HDPE
Anggota kekuatan: Kawat Baja/Benang Kaca FRP
Jumlah serat: 2-288 core
Instalasi: Udara & Saluran
Lapis baja: Pita baja
Aplikasi: Komunikasi Jaringan
Menyoroti:

GYTA Single Mode Fiber Optic Cable

,

12 Core Duct Fiber Optic Cable

,

24 Core Aerial Fiber Optic Cable
Informasi dasar
Tempat asal: GUANGZHOU, CINA
Nama merek: JQ/OEM/Customize
Sertifikasi: ISO9001 ROHS CE-EMC FCC SDOC
Nomor model: GYTA / GYTS
Syarat-syarat pembayaran & pengiriman
Kemasan rincian: Drum kayu
Waktu pengiriman: 5-8 hari kerja
Syarat-syarat pembayaran: L/C, T/T, Western Union
Menyediakan kemampuan: 4500KM Per Bulan
Deskripsi Produk

Outdoor GYTA Single Mode G652D Fiber Optic Cable 12 24 Core for Duct and Aerial Installation

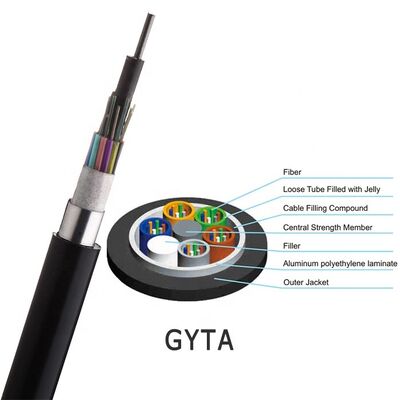

GYTA Fiber Optic Cable Features
  • Stranded loose tube structure for stable fiber protection
  • PSP aluminum tape armor for moisture and crush resistance
  • Water blocking filling compound for reliable watertight performance
  • High strength central member improves mechanical reliability
  • UV resistant PE sheath ensures long term outdoor durability
  • Compatible with single mode fibers
Applications
  • Outdoor duct installation in backbone and access networks
  • Aerial installation for metropolitan and long distance lines
  • Telecom broadband and data transmission systems
  • High reliability communication infrastructure projects



Product Description

Fiber Count
1 2 4 6 8 12 24 36 48 72 96 144 288 cores
Brand Name
JQ/OEM
Length
1km 2km 3km 4km 5km
Armored
Steel Tape or Aluminunm Tape



Fiber Count 6 12 24 32 48 72
Cable Diameter (mm) 8.8 8.8 9.0 9.0 9.0 9.2
Tolerance Range (mm) ±0.2, or customized
Cable Weight (kgs/km) 75 75 75 75 75 75
Loose tube Diameter(mm) 1.6 or 2.0



Optical Characteristics

Items Unit Specification
G652D
Mode Field Diameter 1310nm um 9.2±0.4
1550nm um 10.4±0.5
Cladding Diameter um 124.8±0.7
Cladding Non-Circularity % ≤0.7
Core-Cladding Concentricity Error um ≤0.5
Coating Diameter um 245±5
Coating Non-Circularity % ≤6.0
Cladding-Coating Concentricity Error um ≤12
Cable Cutoff Wavelength nm acc≤1260
Attenuation(max.) 1310nm dB/km ≤0.36
1550nm dBkm ≤0.22





Mechanical Characteristic

Tensile (N) Long term 600
  Short term 1500
Crush (N/100mm) Long term 300
  Short term 1000
Min. Bending radius (D=Cable diameter) Dynamic 20xD
  Static 10xD
Temperature Range (℃) -20~+70



Outdoor GYTA Single Mode Fiber Optic Cable G652D 12 24 Core Duct Aerial Universal Factory Direct Supply 0

Outdoor GYTA Single Mode Fiber Optic Cable G652D 12 24 Core Duct Aerial Universal Factory Direct Supply 1



Application

Suitable for external application in duct and aerial

Outdoor GYTA Single Mode Fiber Optic Cable G652D 12 24 Core Duct Aerial Universal Factory Direct Supply 2

Outdoor GYTA Single Mode Fiber Optic Cable G652D 12 24 Core Duct Aerial Universal Factory Direct Supply 3

FAQ


Q1: Is this GYTA cable compatible with single mode fibers?
A: Yes, it supports G652D single mode fibers.

Q2: What laying methods are suitable for this cable?
A: It works for both duct and aerial installation.

Q3: Does it offer moisture and crush protection?
A: Yes, the PSP aluminum armor provides excellent protection.

Q4: What is the MOQ for sample orders?
A: 1pc sample is available for checking.

Q5: Can you print custom brand logos on the cable?
A: Yes, we can customize brand information on the jacket.
