GCYFY Air Blown Fiber Optic Micro Cable 24 48 96 Core Optical Fiber for Duct Network Installation Lightweight

1km
MOQ
Inquiry for price
harga
GCYFY Air Blown Fiber Optic Micro Cable 24 48 96 Core Optical Fiber for Duct Network Installation Lightweight
fitur Galeri Deskripsi Produk Quote request suatu
fitur
Spesifikasi
Jumlah serat: 4-144Cores
Jenis Serat: Mode tunggal/multi mode
Jaket: PE/PVC/LSZH/HDPE/MDPE
Warna: Hitam atau oranye atau Disesuaikan
Nama Produk: Kabel Mikro yang Ditiup Udara
Instalasi: Pemasangan Pipa Udara atau Saluran
Jumlah Konduktor: ≥ 10
Merek Fiber: Yofc/fiberhome/fujikura/corning
Menyoroti:

air blown fiber optic micro cable

,

24 core duct network fiber optic

,

lightweight outdoor fiber optic cable
Informasi dasar
Tempat asal: Guangzhou, Tiongkok
Nama merek: JQ/OEM/Customize
Sertifikasi: ISO9001 ROHS CE-EMC FCC SDOC
Nomor model: GCYFY/GCYFTY
Syarat-syarat pembayaran & pengiriman
Kemasan rincian: Drum kayu atau disesuaikan
Waktu pengiriman: 5-8 hari kerja
Syarat-syarat pembayaran: L/C, T/T, Western Union, Alipay
Menyediakan kemampuan: 30km per hari
Deskripsi Produk

GCYFY Air Blown Fiber Micro Cable 24 48 96 Core Micro Duct Cable



Product Introduction:

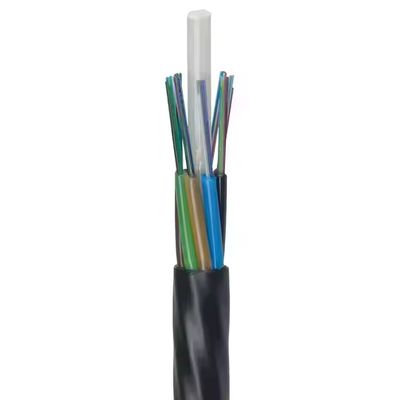

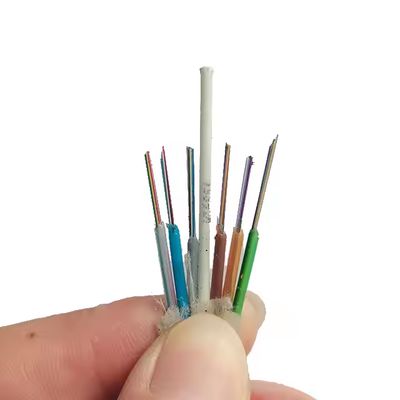

GCYFY air blown fiber micro cable features a loose tube stranded structure with non-metallic strength member, designed for efficient air blowing installation in micro duct networks.



Key Features:

  •  Lightweight and compact cable structure
  •  Non-metallic strength member with no armor design
  •  Suitable for air blowing or pulling installation
  •  Improves duct utilization and reduces installation cost
  •  Supports easy network expansion

Applications:

  • FTTH feeder and drop networks
  • Access and metropolitan area networks
  • Backbone communication systems
  • Subscriber access connections



Optical Characteristics

Item Specification
Fiber type G.652D
Attenuation
@ 1310 nm ≤0.36 dB/km
@ 1383 nm ≤0.35 dB/km
@ 1550 nm ≤0.22 dB/km
@ 1625 nm ≤ 0.30 dB/km
Cable Cut-off Wavelength(λcc) ≤1260 nm
Zero Dispersion Wavelength(nm) 1300 ~ 1324 nm
Zero Dispersion Slope ≤0.092 ps/(nm2.km)
Chromatic Dispersion
@ 1288 ~ 1339 nm ≤3.5 ps/(nm. km)
@ 1550 nm ≤18 ps/(nm. km)
@ 1625 nm ≤22 ps/(nm. km)
PMDQ ≤0.2 ps/km1/2
Mode Field Diameter @ 1310 nm 9.2±0.4 um
Core Concentricity Error ≤0.6 um
Cladding Diameter 125.0±0.7 um
Cladding Non-circularity ≤1.0%
Coating Diameter 245±10 um
Proof Test 100 kpsi (=0.69 Gpa), 1%

GCYFY Air Blown Fiber Optic Micro Cable 24 48 96 Core Optical Fiber for Duct Network Installation Lightweight 0

Fiber & Tube Color


GCYFY Air Blown Fiber Optic Micro Cable 24 48 96 Core Optical Fiber for Duct Network Installation Lightweight 1



GCYFY Air Blown Fiber Optic Micro Cable 24 48 96 Core Optical Fiber for Duct Network Installation Lightweight 2

Environmental Characteristics

• Transport/storage temperature: -40℃ to +70℃



Cable Parameters



Cores



Cores/tube



FRP diameter (mm)



Sheath thickness (mm)

Approx. overall diameter

(mm)

Approx.

weight (kg/km)
12 12 1.5 0.5±0.1 5.6 24
24 12 1.5 0.5±0.1 5.6 24
48 12 1.5 0.5±0.1 5.6 24
72 12 1.5 0.5±0.1 5.6 24
96 12 2.5 0.5±0.1 6.6 38



GCYFY Air Blown Fiber Optic Micro Cable 24 48 96 Core Optical Fiber for Duct Network Installation Lightweight 3



Delivery Length

• Standard length: 4,000m; other lengths are also available.

GCYFY Air Blown Fiber Optic Micro Cable 24 48 96 Core Optical Fiber for Duct Network Installation Lightweight 4

GCYFY Air Blown Fiber Optic Micro Cable 24 48 96 Core Optical Fiber for Duct Network Installation Lightweight 5

GCYFY Air Blown Fiber Optic Micro Cable 24 48 96 Core Optical Fiber for Duct Network Installation Lightweight 6

GCYFY Air Blown Fiber Optic Micro Cable 24 48 96 Core Optical Fiber for Duct Network Installation Lightweight 7



GCYFY Air Blown Fiber Micro Cable FAQ



Q1: What is GCYFY cable used for?
A: It is used for air blown installation in micro duct fiber networks.



Q2: What fiber counts are available?
A: Common options include 24, 48, and 96 cores.



Q3: What is the installation method?
A: The cable is installed by air blowing or pulling into micro ducts.



Q4: What are the advantages of air blown cables?
A: They reduce installation cost and allow easy network expansion.



Q5: Where is this cable commonly applied?
A: FTTH networks, access networks, and metropolitan area networks.
