GYFTY83 Anti-Rodent Armored FRP Strength Member 12 24 48Core Fiber Optic Cable

1 kilometer
MOQ
GYFTY83 Anti-Rodent Armored FRP Strength Member 12 24 48Core Fiber Optic Cable
fitur Galeri Deskripsi Produk Quote request suatu
fitur
Spesifikasi
Nomor model: GYFTY83
Jenis: kabel serat optik luar ruangan
Tempat asal: Guangdong, Tiongkok
Jumlah Konduktor: ≥ 10
Jenis Serat: Mode tunggal G652D atau sebagai permintaan Anda
Panjang: sesuai kebutuhan
Warna: disesuaikan
Struktur kabel: Tabung Multi-Loose Tidak Ada Perisai
Tabung longgar: PBT
Anggota Kekuatan Pusat: FRP
Jaket: Selubung Ganda
Kemasan: Drum kayu/disesuaikan
Aplikasi: Antena dan saluran luar ruangan
OEM: Tersedia
Menyoroti:

Anti-Rodent FRP fiber optic cable

,

Outdoor armored fiber optic cable

,

12-48 core FRP strength cable
Informasi dasar
Tempat asal: Guangdong, Tiongkok
Nama merek: JQ/OEM
Sertifikasi: CE/ISO9001
Nomor model: GYFTY83
Syarat-syarat pembayaran & pengiriman
Kemasan rincian: Drum kayu
Waktu pengiriman: 2-5 hari
Syarat-syarat pembayaran: L/C, D/A, D/P, T/T, Western Union
Menyediakan kemampuan: 8000 kilometer per bulan
Deskripsi Produk

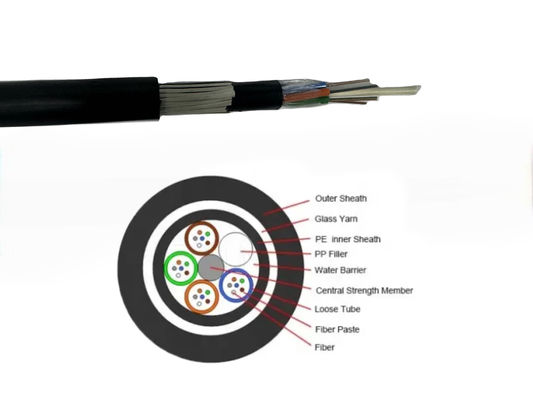

GYFTY83 Anti-Rodent Armored FRP Strength Member 12 24 48Core Fiber Optic Cable


GYFTY83 fiber optic cable is an anti-rodent outdoor cable designed for harsh environments, providing reliable performance and strong protection against physical damage and pests.


Key Features:
FRP armored structure for rodent protection
High resistance to crushing and impact
PE or PVC outer jacket for weather resistance
Resistant to moisture UV and chemicals
Stable performance in extreme environments

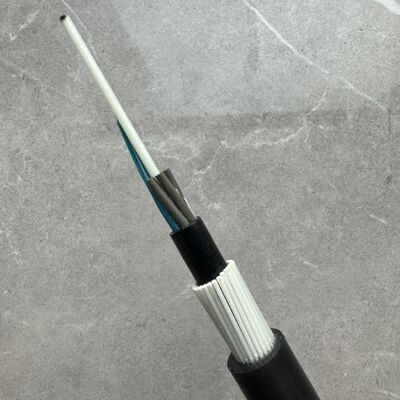

GYFTY83 Anti-Rodent Armored FRP Strength Member 12 24 48Core Fiber Optic Cable 0





Applications:
* Outdoor harsh environment installations
* Areas with high rodent activity
* Underground and duct installations
* Telecom and backbone networks

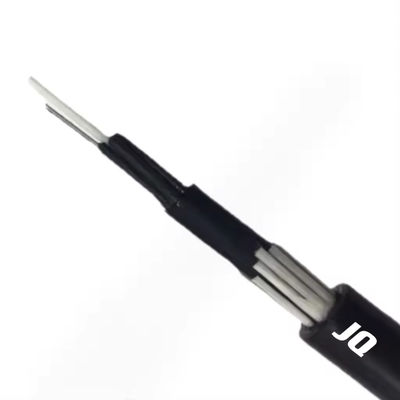

GYFTY83 Anti-Rodent Armored FRP Strength Member 12 24 48Core Fiber Optic Cable 1







Optical Characteristics

Fiber Type   G.652 G.655 50/125^m 62.5/125^m
Attenuation 850 nm     <3.0 dB/km <3.3 dB/km
(+20X) 1300 nm     <1.0 dB/km <1.0 dB/km
  1310 nm <0.34 dB/km <0.40 dB/km
  1550 nm <0.21 dB/km <0.23 dB/km
Bandwidth 850 nm     >500 MHz-km >200 Mhz-km
  1300 nm     >500 MHz-km >500 Mhz-km
Numerical Aperture       0.200±0.015 NA 0.275±0.015 NA
Cable Cut-off Wavelength cc   <1260 nm <1450 nm



Technical parameters

cable countr out sheath diameter Weight Minimum allowable Tensile strength(N) Minimum Min bending radius(MM)
(MM) (KG) allowable Crush load(N/100mm)
    Short term Long term Short term long Term short term long Term
2-36 12.8 170 3000 1000 3000 1000 20D 10D
38-72 14.2 212 3000 1000 3000 1000 20D 10D
74-96 15.7 245 3000 1000 3000 1000 20D 10D
98-120 17.3 289 3000 1000 3000 1000 20D 10D
122-144 18.8 328 3000 1000 3000 1000 20D 10D



Certification:

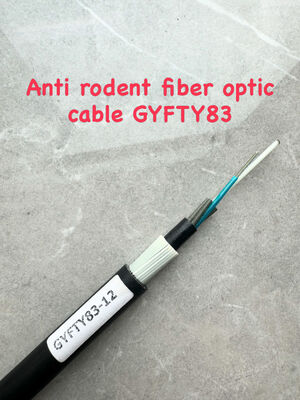

GYFTY83 Anti-Rodent Armored FRP Strength Member 12 24 48Core Fiber Optic Cable 2

FAQ



1. who are we?
We are based in Guangdong, China, start from 2017,sell to Africa(33.00%),South America(17.00%),Western Europe(17.00%),Mid East(17.00%),Southeast Asia(9.00%),South Asia(7.00%). There are total about 11-50 people in our office.


2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;


3.what can you buy from us?
Fiber Optic Cable, FTTH Drop Cable, Communication Cables, Outdoor/Indoor Fiber Cable


4. what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese



5.MOQ: what is your minimum quantity?
-MOQ : 1KM


6.Can I get a sample?
-Yes, we provide FREE sample and you just need to pay for express freight.


7.Accept OEM or ODM?
-Yes,we're manufacturer. And we have our own Engineering Department. You just need to tell us your requirements.


8.What is your delivery time?
-The general delivery time is 3-7 days after order confirmed. It depends on the order quantity.
