MGTSV 24 Core Outdoor Fiber Optic Cable Single Mode Armored Miner Duct Cable

Hubungi sekarang

MGTSV 24 Core Outdoor Fiber Optic Cable Single Mode Armored Miner Duct Cable

Kuantitas min Order :	1 km	Kemasan rincian :	1/2/3/4/5 km dalam satu drum kayu
Waktu pengiriman :	3-5 tahun	Syarat-syarat pembayaran :	L/C, T/T, Western Union
Menyediakan kemampuan :	4500KM Per Bulan

Tempat asal:	Guangzhou China	Nama merek:	JQ/OEM/Customize
Sertifikasi:	ISO9001 ROHS CE-EMC FCC SDOC	Nomor model:	MGTSV

Informasi Detail
Bahan Jaket:	LSZH Retardant Api	Jumlah serat:	4-288core
Struktur:	Tabung longgar terdampar	Nama Produk:	Kabel Serat Optik Luar Ruang
Jenis Serat:	Yofc atau fiberhome sebagai permintaan	Aplikasi:	udara, saluran
Warna:	Kuning biru	Modul:	MGTSV-24B1
Menyoroti:	24 core outdoor fiber optic cable , single mode armored duct cable , miner duct fiber optic cable

Deskripsi Produk

Multi Loose tube Miner Duct Fiber Optic Cable MGTSV

Key Features

Excellent mechanical and temperature performance
High-strength loose tube with superior waterproof protection
Special tube-filling compound ensures reliable fiber protection
Strong crush resistance and high flexibility
Steel wire central strength member for enhanced durability
Full cable-core filling for complete water blocking
Loose tube filled with moisture-resistant gel
PSP layer improves moisture-proof and anti-rodent performance
Water-blocking materials prevent longitudinal seepage
Blue flame-retardant PVC outer sheath for strong fire-resistant performance

Item Name	MGTSV Fiber Optic Cable
Place of Origin	Guangdong,China
Model Number	MGTSV
Brand Name	JQ/ Jiqian/ Customize
Fiber Type	Single mode ITU-T G652D
Fiber No.	2-288 cores
Strength Member	Central Steel Wire/ FRP
Material of Jacket	Flame-retardant Sheath
Cable Structure	Stranded Loose Tube
Certificate	ISO9001/CE/RoHS/CE
Storing Temperature	-40℃ to +70℃
Application	Duct/Aerial

Optical Characteristics

Items		Unit	Specification
Items		Unit	G652D
Mode Field Diameter	1310nm	um	9.2±0.4
Mode Field Diameter	1550nm	um	10.4±0.5
Cladding Diameter		um	124.8±0.7
Cladding Non-Circularity		%	≤0.7
Core-Cladding Concentricity Error		um	≤0.5
Coating Diameter		um	245±5
Coating Non-Circularity		%	≤6.0
Cladding-Coating Concentricity Error		um	≤12
Cable Cutoff Wavelength		nm	acc≤1260
Attenuation(max.)	1310nm	dB/km	≤0.36
Attenuation(max.)	1550nm	dBkm	≤0.22

Technical data

Cable Type	Fiber Count	Tubes +Fills	Cable Diameter mm	Cable Weight Kg/km	Tensile Strength Long/Short Term N	Crush Resistance Long /Short Term N/100m	Bending Radius Static /Dynamic mm
MGTSV-2~6	2~60	5	12.2	156	1000/2000	500/1500	15D/30D
MGTSV-62~72	62~72	6	13.8	210	1750/3500	500/1500	15D/30D
MGTSV-74~96	74~96	8	15.1	242	1750/3500	500/1500	15D/30D
MGTSV-98~120	98~120	10	17.2	280	1750/3500	500/1500	15D/30D
MGTSV-122~144	122~144	12	19	320	1750/3500	500/1500	15D/30D
MGTSV-146~216	146~216	18	19	320	1750/3500	500/1500	15D/30D

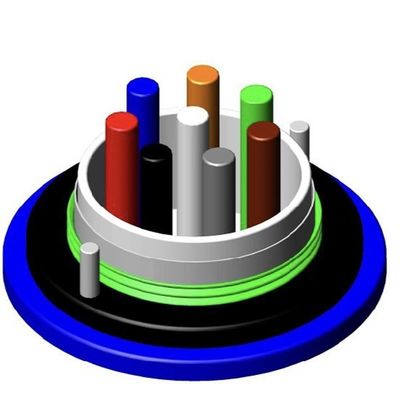

Product Image

MGTSV 24 Core Outdoor Fiber Optic Cable Single Mode Armored Miner Duct Cable 0

MGTSV 24 Core Outdoor Fiber Optic Cable Single Mode Armored Miner Duct Cable 2

Application

Suitable for Mine Duct / Aerial

Storage / Operating Temperature: -40℃~+70℃

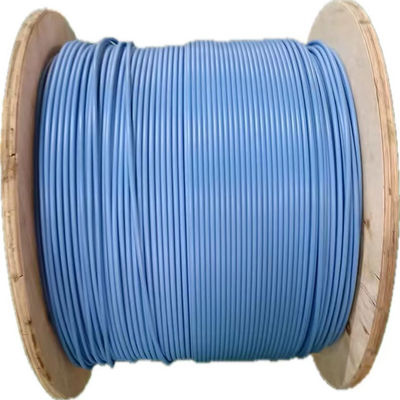

Packing&Delivery

1/2/3/4/5 km in one wooden drum,deliver days:5-8work days

MGTSV 24 Core Outdoor Fiber Optic Cable Single Mode Armored Miner Duct Cable 3

MGTSV 24 Core Outdoor Fiber Optic Cable Single Mode Armored Miner Duct Cable 4
