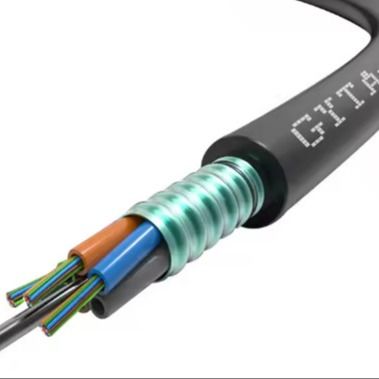

Outdoor GYTA/GYTS Fiber Optic Cable 12/24 Core Single Mode G652D Factory Direct Price
Outdoor GYTA/GYTS Fiber Optic Cable 12/24 Core Single Mode G652D Factory Direct Price Outdoor GYTA/GYTS Fiber Optic Cable 12/24 Core Single Mode G652D Factory Direct Price Outdoor GYTA/GYTS Fiber Optic Cable 12/24 Core Single Mode G652D Factory Direct Price
Hubungi sekarang

Outdoor GYTA/GYTS Fiber Optic Cable 12/24 Core Single Mode G652D Factory Direct Price

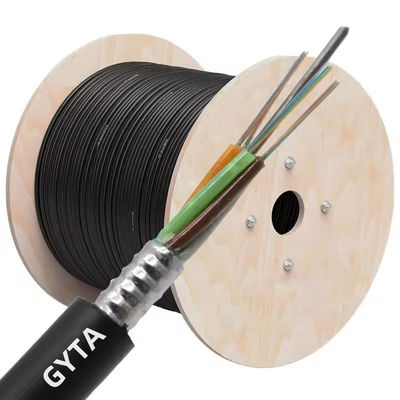

Kuantitas min Order : 1 km Kemasan rincian : Drum kayu
Waktu pengiriman : 5-8 hari kerja Syarat-syarat pembayaran : L/C, T/T, Western Union
Menyediakan kemampuan : 4500KM Per Bulan
Tempat asal: Guangzhou, Cina Nama merek: JQ/OEM/Customize
Sertifikasi: ISO9001/CE/ROHS/FCC Nomor model: GYTA / GYTS

Informasi Detail
Jenis Serat: YOFC, Fiberhome, sesuai permintaan Warna: Hitam atau oranye atau Disesuaikan
Jaket: PE, MDPE, LSZH, PVC, HDPE Anggota kekuatan: Kawat Baja/Benang Kaca FRP
Jumlah serat: 2-288 core Instalasi: Udara & Saluran
Lapis baja: Pita baja Aplikasi: Komunikasi jaringan/jarak jauh

Deskripsi Produk

Outdoor GYTA G652D GYTA / GYTS 12 24 Cores Single Mode G652D Fiber Optic Cable

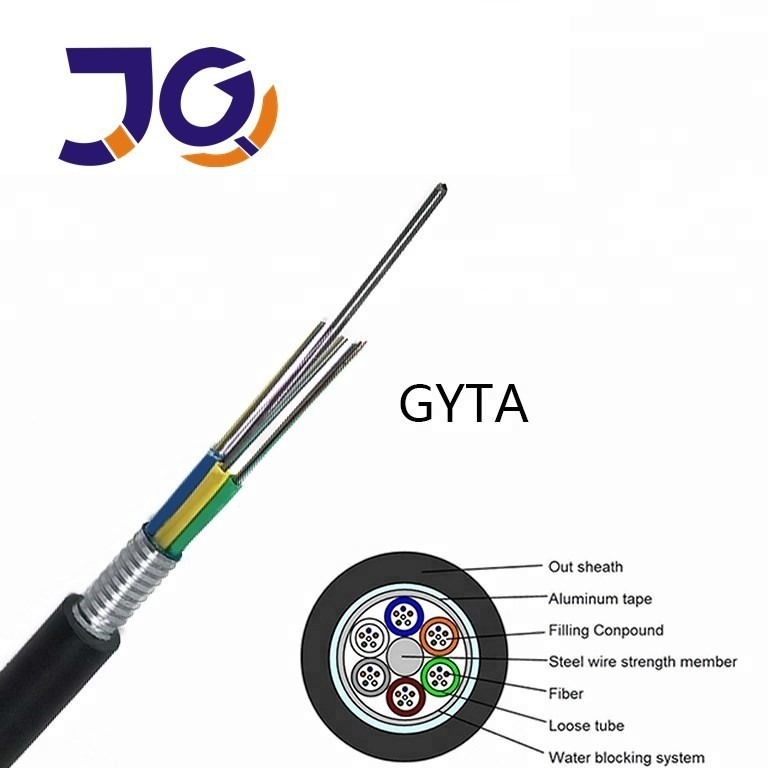

Clored bare fiber in PBT Loose tube, stranded loose tube, APL wrapping cable core, fiber optic cableG652D PE jacket, single steel wire central strengthen, application, duct



Product Features & Advantages



  • Durable Outdoor Structure:PBT loose tube with water-blocking gel for stable fiber protection.

  • Strong Mechanical Performance:High tensile and crush resistance; works from –40°C to +70°C.

  • Excellent Waterproofing:Full-core filling; GYTS adds APL armor for stronger moisture barrier.

  • UV-Resistant PE Jacket:Long service life for duct or aerial installation.

  • G652D Low-Loss Fiber:High bandwidth and long-distance transmission.

  • Easy Installation:Central strength member ensures stable pulling and fast deployment.

Other Models Available(Single/Double Jacket)

2F 4F 8F 12F 24F 48F 72F 96F 128F 144F 288F
Fiber Count 6 12 24 32 48 72
Cable Diameter (mm) 8.8 8.8 9.0 9.0 9.0 9.2
Tolerance Range (mm) ±0.2, or customized
Cable Weight (kgs/km) 75 75 75 75 75 75
Loose tube Diameter(mm) 1.6 or 2.0







Optical Characteristics

Items Unit Specification
G652D
Mode Field Diameter 1310nm um 9.2±0.4
1550nm um 10.4±0.5
Cladding Diameter um 124.8±0.7
Cladding Non-Circularity % ≤0.7
Core-Cladding Concentricity Error um ≤0.5
Coating Diameter um 245±5
Coating Non-Circularity % ≤6.0
Cladding-Coating Concentricity Error um ≤12
Cable Cutoff Wavelength nm acc≤1260
Attenuation(max.) 1310nm dB/km ≤0.36
1550nm dBkm ≤0.22





Mechanical Characteristic

Tensile (N) Long term 600
  Short term 1500
Crush (N/100mm) Long term 300
  Short term 1000
Min. Bending radius (D=Cable diameter) Dynamic 20xD
  Static 10xD
Temperature Range (℃) -20~+70




Application

Suitable for external application in duct and aerial

Outdoor GYTA/GYTS Fiber Optic Cable 12/24 Core Single Mode G652D Factory Direct Price 0



Product Description

Fiber Count
1 2 4 6 8 12 24 36 48 72 96 144 288 cores
Brand Name
JQ/OEM
Length
1km 2km 3km 4km 5km
Armored
Steel Tape or Aluminunm Tape





Outdoor GYTA/GYTS Fiber Optic Cable 12/24 Core Single Mode G652D Factory Direct Price 1

Outdoor GYTA/GYTS Fiber Optic Cable 12/24 Core Single Mode G652D Factory Direct Price 2

Outdoor GYTA/GYTS Fiber Optic Cable 12/24 Core Single Mode G652D Factory Direct Price 3













GYTS / GYTA Stranded Loose Tube Outdoor Armored Fiber Optic Cable Factory Offer   We are 10+ years fiber optic cable manufacturer
Welcome to visit our factory!+86 18122384553
