ODM Multi Mode Fiber Optic Cable 6 12 24 Core GJFJV Indoor High Performance Optical Cable
ODM Multi Mode Fiber Optic Cable 6 12 24 Core GJFJV Indoor High Performance Optical Cable ODM Multi Mode Fiber Optic Cable 6 12 24 Core GJFJV Indoor High Performance Optical Cable ODM Multi Mode Fiber Optic Cable 6 12 24 Core GJFJV Indoor High Performance Optical Cable
Hubungi sekarang

ODM Multi Mode Fiber Optic Cable 6 12 24 Core GJFJV Indoor High Performance Optical Cable

Kuantitas min Order : 1 km Kemasan rincian : Drum Kayu 2KM
Waktu pengiriman : 5-8 hari kerja Syarat-syarat pembayaran : L/C, Western Union, T/T
Menyediakan kemampuan : 4500KM Per Bulan
Tempat asal: Guangzhou China Nama merek: JQ/OEM/Customize
Sertifikasi: ISO9001 ROHS CE-EMC FCC SDOC Nomor model: GJFJV

Informasi Detail
Nama: Kabel serat optik dalam ruangan Selubung luar: PVC, PE, LSZH
Jenis kabel: serat buffer ketat dengan benang aramid Tempat asal: Guangzhou China
Bahan Kekuatan: Benang Aramid Warna: Oranye, kuning, biru
Inti: 2-48Fiber Jenis Serat: Multimode
Menyoroti:

6 core indoor fiber optic cable

,

24 core GJFJV optical cable

,

high performance multi mode fiber

Deskripsi Produk

ODM Manufactory Supply Indoor Cable Multi Mode 6 12 24 Core GJFJV



Multi-purpose Distribution Fiber Optic Cable
Uses 600µm or 900µm flame-retardant tight buffer fibers as the optical medium, wrapped with aramid yarn for strength, and completed with PVC or LSZH jacket. High-quality fibers and precise manufacturing ensure excellent performance for indoor optical communication.



Characteristics

  • Excellent mechanical and environmental performance

  • Flame retardant and standard-compliant

  • Flexible and easy to install and splice

  • High-capacity data transmission

  • Suitable for diverse market and client needs



Optical Characteristics











G.652D



50/125um



625/125μm



Attenuation



@850nm







≤3.0dB/km



≤3.0dB/km



(+20°C)



@1300nm







≤1.0dB/km



≤1.0dB/km







@1310nm



≤0.36dB/km















@1550nm



≤0.22dB/km











Bandwidth(ClassA)



@850nm







2500MHz-km



2200MHz-km







@1300nm







21000MHz-km



2600MHz-km



Numerical Aperture











0.200±0.015NA



0.275±0.015NA



Cable Cut-off Wavelength λcc







≤1260nm





Cable diameter

  MPC-02 MPC-04 MPC-06 MPC-08 MPC-10 MPC-12
Cable Diameter(mm) 4.1±0.25 4.8±0.25 5.1±0.25 6.2±0.25 6.5±0.25 6.8±0.25
Cable Weight(kg/km) 12 20 24 29 32 35
Tight Buffer Fiber Diameter 900±50μm



Technical Parameters

Tight Buffer Indoor Fiber Optic Cale GJFJV
Cable
Count		 Outside
Diameter		 Tight
buffer
Diameter

Weight



 Minimum
allowable Tensile
Strength(N)

Minimum allowable
Crush Load

(N/100mm)

Minimum

Bending
Radius (MM)

 Storage
temperature
(MM) (MM) (KG) short term long term short term long term short term long term (°C)
2 3 0.9 15 600 200 1000 200 20D 10D -40+60
4 5 0.9 22 600 200 1000 200 20D 10D -40+60
6 5 0.9 23 600 200 1000 200 20D 10D -40+60
8 5.5 0.9 28 600 200 1000 200 20D 10D -40+60
12 6 0.9 38 600 200 1000 200 20D 10D -40+60
16 7.2 0.9 42 600 200 1000 200 20D 10D -40+60
24 8.3 0.9 58 600 200 1000 200 20D 10D -40+60
48 10 0.9 96 600 200 1000 200 20D 10D -40+60



Application

1.Used in pigtails and patch cords

2.Used as interconnect lines of equipments.

3.Used in indoor and outdoor cabling, especially used as distribution cable

4.Used in optical connections in optical communication rooms and optical distribution frames



ODM Multi Mode Fiber Optic Cable 6 12 24 Core GJFJV Indoor High Performance Optical Cable 0

ODM Multi Mode Fiber Optic Cable 6 12 24 Core GJFJV Indoor High Performance Optical Cable 1



Product Detail

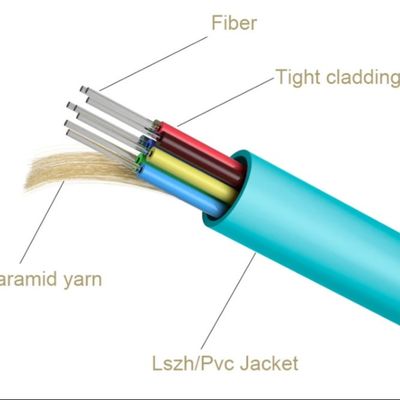

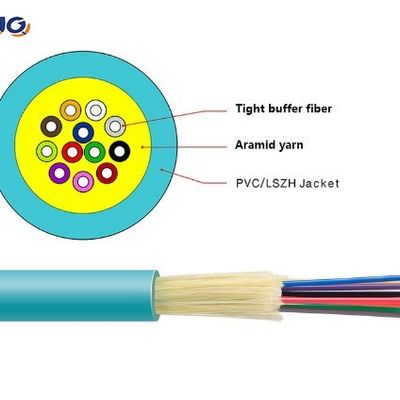

GJFJV indoor fiber optic cable is made by evenly applying strands of Aramid yarns or High strength glass yarns as the strength member over 900μm or 600μm tight buffer fibers and then is completed with PVC(LSZH)jacket.

ODM Multi Mode Fiber Optic Cable 6 12 24 Core GJFJV Indoor High Performance Optical Cable 2

ODM Multi Mode Fiber Optic Cable 6 12 24 Core GJFJV Indoor High Performance Optical Cable 3

ODM Multi Mode Fiber Optic Cable 6 12 24 Core GJFJV Indoor High Performance Optical Cable 4

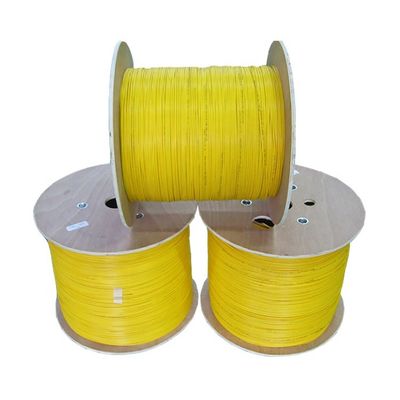

Packing

2km or customized length export wooden drum

ODM Multi Mode Fiber Optic Cable 6 12 24 Core GJFJV Indoor High Performance Optical Cable 5



FAQ – Fiber Optic Cable



Why Choose Us?
Professional manufacturer with low MOQ and free samples, stable high quality, fast solutions, and competitive pricing.



OEM/ODM Service?
Yes, we accept OEM and ODM.



Logo Printing?
Yes, logos can be printed on products or boxes.



Shipping Methods?
Delivery by sea, land, or air is available.



Payment Options?
LC, T/T, Western Union, Alipay accepted.



Delivery Time?
Usually 3–7 working days, depending on order quantity; we arrange shipment promptly after payment.
