GYTA33 Submarine Fiber Optic Cable 48/96/144 Core for Long Distance Communication

Deskripsi Produk

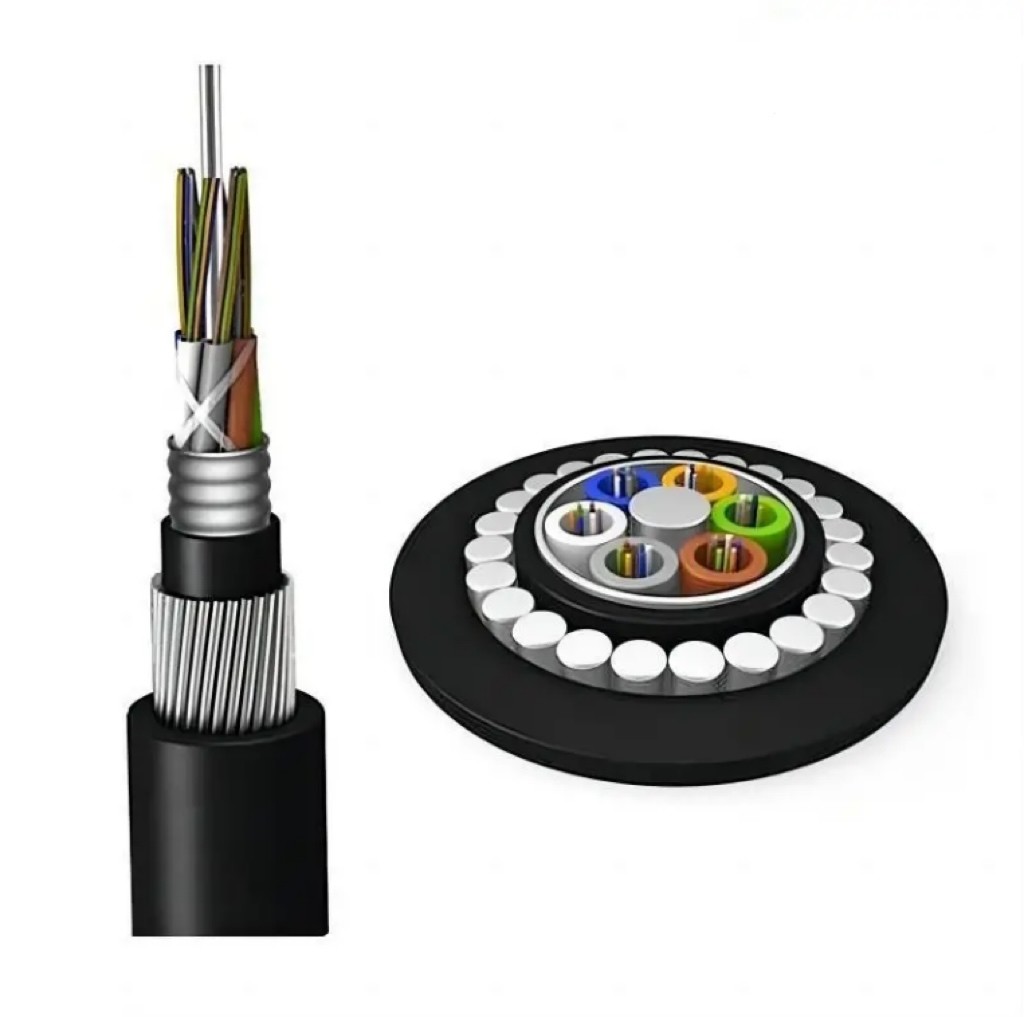

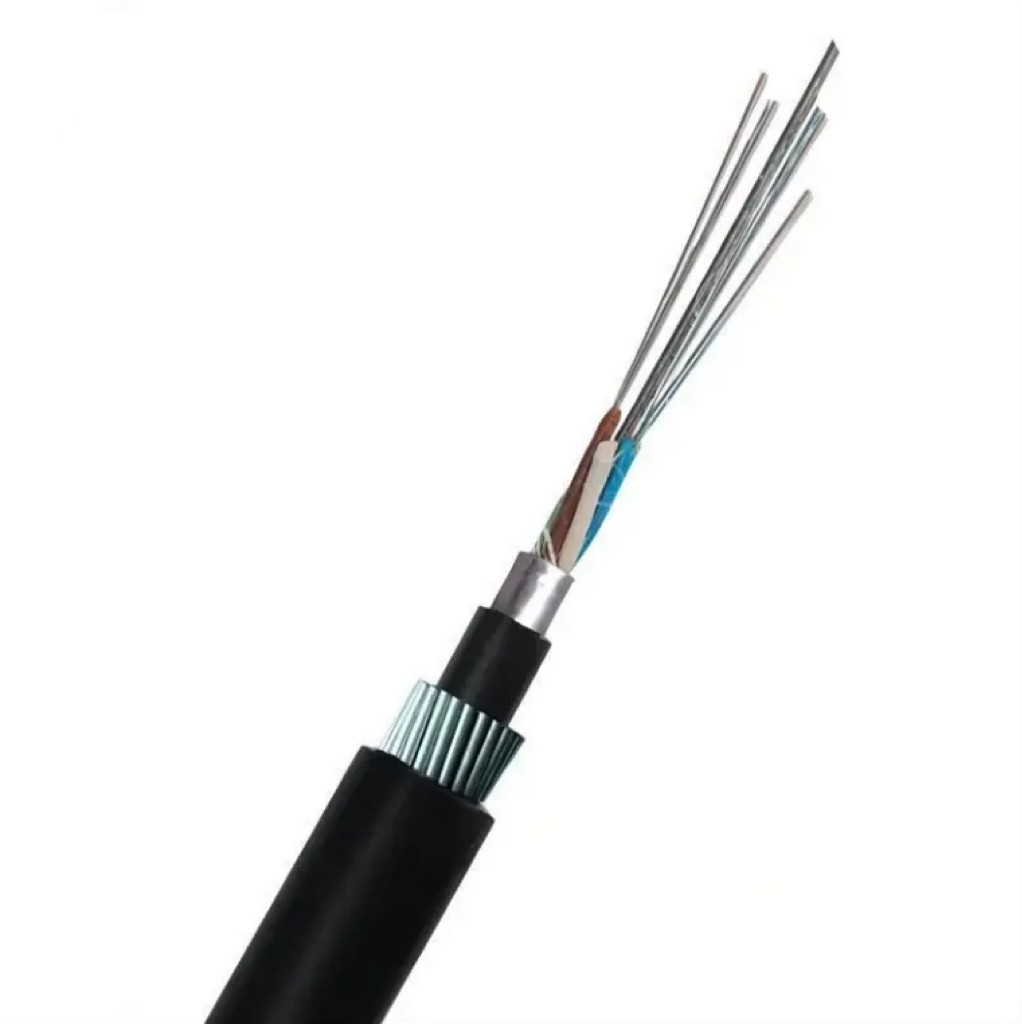

GYTA33 Underwater Fiber Optic Cable
Durable steel-wire armored cable with double-jacket protection, designed for submarine, river-crossing, and direct-buried installations.

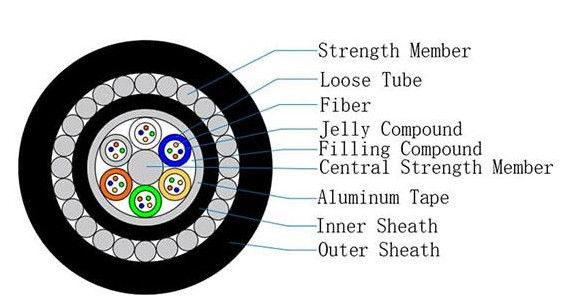

Fiber Type: G652D SM | Cores: 12–144 | Structure: Loose tube

Features: High mechanical strength, moisture and corrosion resistance, long service life.

Applications: Telecom backbones, underground networks, oil, gas, and power communication.



Fiber Parameters:



Item		Unit	Specification
Fiber Type			G.652D
Mode field diameter	1310nm	μm	9.2±0.4
	1550nm	μm	10.4±0.8
Cladding diameter		μm	125.0±1
Cladding non-circularity		%	≤1.0
Core/cladding concentricity error		μm	≤0.5
Coating diameter		μm	245±5
Coating non-Circularity		%	≤6.0
Coating/cladding concentricity error		μm	≤12.0
Cable cut-off wavelength		nm	≤1260
Attenuation Coefficient	1310nm	dB/km	≤0.36
	1550nm	dB/km	≤0.22
Proof stress level		kpsi	≥100



Lead time:Usually 7days,it depends on order quantity

Shipping methods:by sea LCL/FCL,It depends on order quantity





Company Profile

Guangzhou Jiqian Fiber Optic Cable Co., Ltd.
A high-tech manufacturer with 13+ years of experience, ISO9001, FCC, RoHS, and CE certified. We offer OEM and custom fiber optic cables, FTTH drop cables, and accessories for telecom, railways, and communication networks, exported worldwide.



Exhibition



Certification:





FAQ

1. Are you a manufacturer?
Yes, we are a professional manufacturer with over 13 years of experience in fiber optic cable production.



2. What fiber brands do you use?
We mainly use YOFC and FiberHome fibers.



3. Do you provide samples?
Yes, we offer free samples. Customers only need to cover the freight cost.



4. Can you accept small orders?
Of course. We support small orders and new projects, as we believe business often starts from small quantities.



5. What is the warranty period?
Our outdoor fiber optic cables come with a 25–30 year warranty.



6. What certifications do you have?
We are certified with ISO9001, FCC, RoHS, and CE.



7. How long is your delivery time?
Typically 5–7 working days, depending on the order quantity.



8. What payment methods do you accept?
We accept T/T, L/C, and Western Union.



9. Do you offer customization and OEM service?
Yes, OEM & ODM services are available. You can send us your design or requirements.
