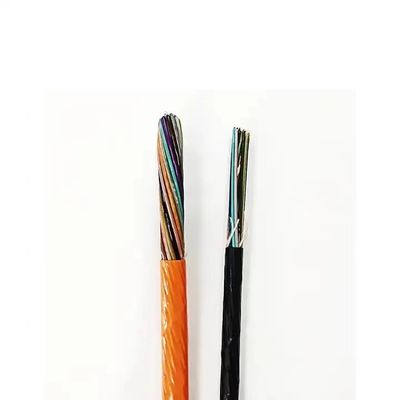

96 Core GCYFY Air Blown Microduct Fiber Cable Stranded Loose Tube High Speed Data Transmission

Hubungi sekarang

96 Core GCYFY Air Blown Microduct Fiber Cable Stranded Loose Tube High Speed Data Transmission

Kuantitas min Order :	1 km	Kemasan rincian :	Drum kayu
Waktu pengiriman :	5-8 hari kerja	Syarat-syarat pembayaran :	L/C, T/T, Western Union
Menyediakan kemampuan :	30km per hari

Tempat asal:	Guangzhou, Cina	Nama merek:	JQ/OEM/Customize
Sertifikasi:	ISO9001 ROHS CE-EMC FCC SDOC	Nomor model:	GCYFY/GCYFTY

Informasi Detail
Jumlah serat:	4-144Cores	Tipe serat:	Mode tunggal/multi mode
Jaket:	PE/PVC/LSZH/HDPE/MDPE	Warna:	Hitam atau oranye atau Disesuaikan
Nama Produk:	Kabel Mikro yang Ditiup Udara	Nomor model:	GCYFY/GCYFTY
Panjang:	2 km atau panjang yang disesuaikan	Instalasi:	Udara atau saluran
Jumlah konduktor:	≥ 10	Di luar ruangan:	Kabel serat optik luar ruangan
Anggota Kekuatan Pusat:	FRP atau Kawat Baja	Bahan blocking waterbl:	Pita pemblokir air atau senyawa pengisian
baja:	Armor Pita Baja Bergelombang	Ukuran kabel:	8mm ~ 16mm
Core:	Sesuai permintaan pembeli	Struktur kabel:	Armor Pita Baja Tabung Multi-Loose
RTS:	45-80 kN	Suhu operasi:	-40 ° C hingga +70 ° C.
OEM:	Dapat diterima	Jaminan:	25 tahun
Tabung longgar:	PBT	Model:	kabel serat optik lapis baja
Bahan jaket:	PE	Model serat:	Singlemode/multimode
Inti:	12-144Cores	Diameter kurir:	5.0mm
Warna Jaket Keluar:	Hitam	Keluar sarung:	HDPE
Angkat Waktu:	Lebih dari 20 Tahun	Bahan tabung longgar:	PBT
Struktur:	tabung longgar tengah	Bahan sarung bagian dalam:	PE/HDPE
Mencicipi:	Bebas	Nomor inti:	6CORES/8CORES/12CORES
Anggota kekuatan:	Kawat baja	Jenis kabel:	Tabung longgar
Menyoroti:	96 core microduct fiber cable , air blown outdoor fiber optic , loose tube high speed cable

Deskripsi Produk

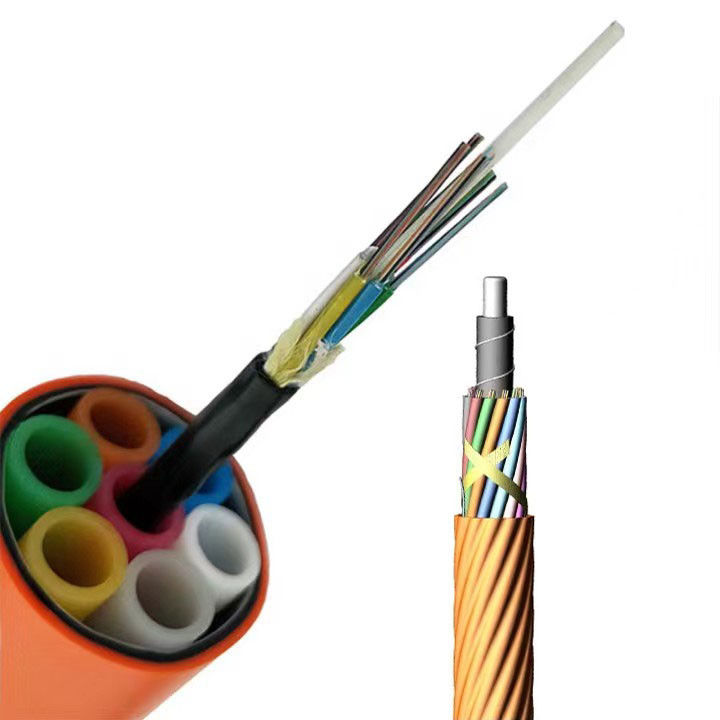

Stranded Loose Tube GCYFY Air-Blown Micro Duct Cable

Product Description

The GCYFY air-blown micro duct cable features a stranded loose tube design for high-performance communication networks. Compact, lightweight, and easy to handle, it is optimized for air-blown installation in micro ducts, allowing rapid and cost-effective deployment.

Each loose tube houses premium optical fibers with water-blocking gel, ensuring strong mechanical protection and stable signal transmission even in harsh conditions. The stranded construction improves tensile strength, while the durable outer sheath resists moisture and environmental impact.

Thanks to its high fiber count and efficient structure, this GCYFY cable is ideal for FTTx, backbone links, data centers, and metro networks requiring high-speed, high-capacity data transmission.

1. Model: GCYFY-96B1.3

2. Cable Cross-section

96 Core GCYFY Air Blown Microduct Fiber Cable Stranded Loose Tube High Speed Data Transmission 0

Optical Characteristics

Item	Specification
Fiber type	G.652D
Attenuation
@ 1310 nm	≤0.36 dB/km
@ 1383 nm	≤0.35 dB/km
@ 1550 nm	≤0.22 dB/km
@ 1625 nm	≤ 0.30 dB/km
Cable Cut-off Wavelength(λcc)	≤1260 nm
Zero Dispersion Wavelength(nm)	1300 ~ 1324 nm
Zero Dispersion Slope	≤0.092 ps/(nm2.km)
Chromatic Dispersion
@ 1288 ~ 1339 nm	≤3.5 ps/(nm. km)
@ 1550 nm	≤18 ps/(nm. km)
@ 1625 nm	≤22 ps/(nm. km)
PMDQ	≤0.2 ps/km1/2
Mode Field Diameter @ 1310 nm	9.2±0.4 um
Core Concentricity Error	≤0.6 um
Cladding Diameter	125.0±0.7 um
Cladding Non-circularity	≤1.0%
Coating Diameter	245±10 um
Proof Test	100 kpsi (=0.69 Gpa), 1%

Fiber & Tube Color

Features
GCYFY stranded loose tube air-blown micro cable uses a non-metallic strength member and unarmored structure, making it lightweight and flexible. It can be installed by air-blowing into pre-laid micro ducts, eliminating the constraints of traditional cable-laying methods. This design increases duct utilization, simplifies network expansion, and supports efficient, scalable deployment.

Cable Parameters

Cores

Cores/tube

FRP diameter (mm)

Sheath thickness (mm)

Approx. overall diameter

(mm)

Approx.

weight (kg/km)

1.5

0.5±0.1

5.6

1.5

0.5±0.1

5.6

48	12	1.5	0.5±0.1	5.6	24
72	12	1.5	0.5±0.1	5.6	24
96	12	2.5	0.5±0.1	6.6	38

Environmental Characteristics

Working temperature	-35oC ~ +70oC
Storage and transportation temperature	-35oC~ +70oC
Installation temperature	-15oC~ +60oC

Applications
• Ideal as a drop cable in FTTH networks, connecting branch points to subscriber access points through air-blown installation.
• Suitable for backbone, metropolitan area, and access networks requiring high-speed, high-capacity transmission.

Delivery Length
• Standard supply length: 2,000 m per reel; custom lengths available on request.

96 Core GCYFY Air Blown Microduct Fiber Cable Stranded Loose Tube High Speed Data Transmission 3

FAQ

Q1: What is GCYFY air-blown micro duct cable used for?
A: It is widely applied in FTTx projects, backbone links, data centers, and metro networks, delivering high fiber capacity and fast deployment.

Q2: How is it installed?
A: The cable is air-blown into micro ducts, allowing quick, flexible, and cost-efficient installation.

Q3: Why use a stranded loose tube design?
A: It enhances strength, flexibility, and fiber protection, ensuring stable data transmission.

Q4: Is it water-resistant?
A: Yes, water-blocking gel inside the loose tubes prevents moisture and safeguards fibers.

Q5: What fiber counts are available?
A: Standard counts include 24, 48, and 96 cores, with custom options available on request.

Q6: Do you offer OEM service?
A: Yes, we can provide OEM service and print your logo or label on the cable and packaging.

Q7: Can I request samples?
A: Yes, sample orders are available for quality testing before bulk purchase.
